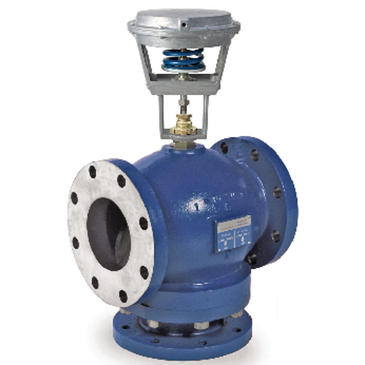

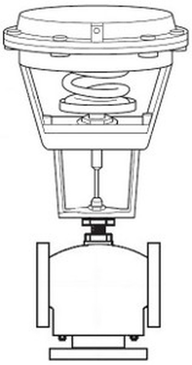

VK-9313-601-5-14 | VB: 4 in, 3W Mix, Globe, FLG, UC, BR, 170 cv, 22 PSI; Act (MK-6801): Pneu, Prop, 3-8 PSIG, SR, NC, Air NPT, Linear, N1 | Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VK-9313-601-5-14
Documents and manuals
Schneider Electric VK-9313-601-5-14 Documents
Overview
Details for VK-9313-601-5-14
VB: 4 in, 3W Mix, Globe, FLG, UC, BR, 170 cv, 22 PSI; Act (MK-6801): Pneu, Prop, 3-8 PSIG, SR, NC, Air NPT, Linear, N1
Valve Assembly:- Body Size: 4 in
- Configuration: 3-Way Mixing
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up, mixing closed A to AB
- Material Trim: Brass
- Flow Coefficient: 170 cv
- Close-Off Pressure: 22 PSI
- Actuator Type: Pneumatic
- Control Signal: Proportional
- Control Spring Range: 3 to 8 PSIG
- Loss of Power Type: Spring Return
- Loss of Power Position: Up/Retract A closed
- Leads and Connections: 1/8 in Air NPT
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Valve Body: VB-9313-0-5-14
- Valve Linkage: AV-495
- Actuator: MK-6801
Product Alert: Not for use with steam.
Specifications
Item Number | VK-9313-601-5-14 |
Brand | Schneider Electric |
Control Input | Modulating |
Control Valves Type | Globe Valve |
CV / GPM | 170 Cv |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 4" - 3 Way |
Voltage |
