VK-8303-602-5-12 | VB: 2-1/2 in, 3W Mix/Div, Globe, FLG, UC, BR, See doc for cv, 35 PSI; Act (MK-6811): Pneu, Prop, 5-10 PSIG, SR, Air NPT, Linear, N1 | Schneider Electric

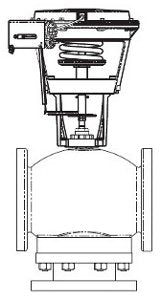

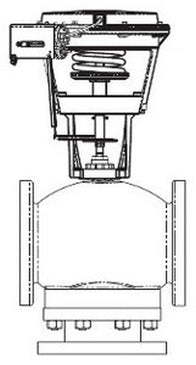

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VK-8303-602-5-12
Overview
Details for VK-8303-602-5-12
VB: 2-1/2 in, 3W Mix/Div, Globe, FLG, UC, BR, See doc for cv, 35 PSI; Act (MK-6811): Pneu, Prop, 5-10 PSIG, SR, Air NPT, Linear, N1
Valve Assembly:- Body Size: 2-1/2 in
- Configuration: 3-Way Mixing/Diverting
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
- Material Trim: Brass
- Flow Coefficient: See documentation for cv cv
- Close-Off Pressure: 35 PSI
- Actuator Type: Pneumatic
- Control Signal: Proportional
- Control Spring Range: 5 to 10 PSIG
- Loss of Power Type: Spring Return
- Leads and Connections: 1/8 in Air NPT
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Valve Body: VB-8303-0-5-12
- Valve Range: Balanced Plug Technology
- Valve Linkage: AV-497
- Actuator: MK-6811
Product Alert: Flow Coefficient varies depending on configuration; see documentation for further details. Not for use with steam.
Specifications
Item Number | VK-8303-602-5-12 |
Brand | Schneider Electric |
Control Input | Modulating |
Control Valves Type | Globe Valve |
End Switch | No |
freeship | upsground |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 2.5" - 3 Way |
Voltage |
