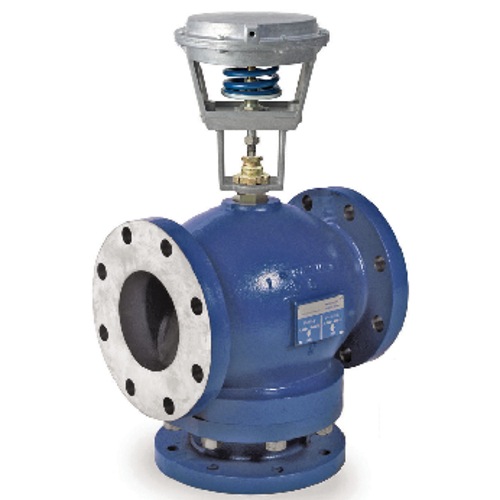

VK-8213-602-5-15 | VB: 5 in, 2W, Globe, FLG, UO, BR, 240 cv, 125 PSI; Act (MK-6811): Pneu, Prop, 5-10 PSIG, SR, NO, Air NPT, Linear, N1 | Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VK-8213-602-5-15
Overview
Details for VK-8213-602-5-15
VB: 5 in, 2W, Globe, FLG, UO, BR, 240 cv, 125 PSI; Act (MK-6811): Pneu, Prop, 5-10 PSIG, SR, NO, Air NPT, Linear, N1
Valve Assembly:- Body Size: 5 in
- Configuration: 2-Way
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up A open
- Material Trim: Brass
- Flow Coefficient: 240 cv
- Close-Off Pressure: 125 PSI
- Actuator Type: Pneumatic
- Control Signal: Proportional
- Control Spring Range: 5 to 10 PSIG
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally open
- Leads and Connections: 1/8 in Air NPT
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Valve Body: VB-8213-0-5-15
- Valve Range: Balanced Plug Technology
- Valve Linkage: AV-497
- Actuator: MK-6811
Specifications
| Item Number | VK-8213-602-5-15 |
| Brand | Schneider Electric |
| Control Input | Modulating |
| Control Valves Type | Globe Valve |
| CV / GPM | 240 Cv |
| End Switch | No |
| Housing | NEMA 1 |
| Spring Return | Spring Return |
| Valve Size | 5" - 2 Way |
| Voltage |
