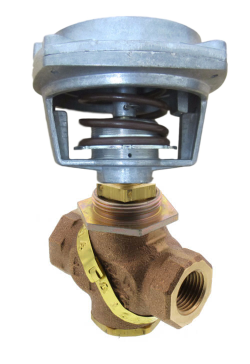

VK-7313-613-4-11 | VB: 2 in, 3W Mix, Globe, NPT, BR, 41 cv, 90 PSI; Act (MK-6621): Pneu, Prop, 8-13 PSIG, SR, NC, Air NPT, Linear, N1 | Schneider Electric

VB: 2 in, 3W Mix, Globe, NPT, BR, 41 cv, 90 PSI; Act (MK-6621): Pneu, Prop, 8-13 PSIG, SR, NC, Air NPT, Linear, N1

• Body Size: 2 in
• Configuration: 3-Way Mixing
• Type: Globe
• Connection: NPT

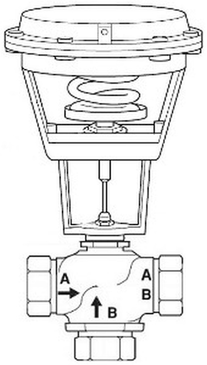

• Stem Flow Action: Stem down flow A to AB
• Material Trim: Brass
• Flow Coefficient: 41 cv
• Close-Off Pressure: 90 PSI
• Actuator Type: Pneumatic
• Control Signal: Proportional
• Control Spring Range: 8 to 13 PSIG
• Loss of Power Type: Spring Return
• Loss of Power Position: Up/Retract A closed
• Leads and Connections: 1/8 in Air NPT
• Mechanical Movement: Linear
• Protection Rating: NEMA 1

• Valve Body: VB-7313-0-4-11
• Valve Range: Venta
• Valve Linkage: AV-430
• Actuator: MK-6621
