VK-7313-201-4-04 | VB: 1/2 in, 3W Mix, Globe, NPT, BR, 4.4 cv, 150 PSI; Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, NC, Air NPT, Linear, N1 | Schneider Electric

Brand: Schneider ElectricSKU: VK-7313-201-4-04
Schneider Electric | VK-7313-201-4-04

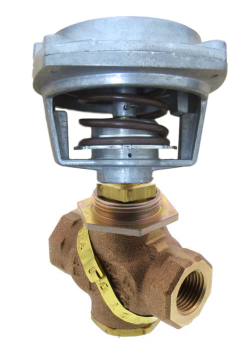

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VK-7313-201-4-04
Jump to: Overview & Specifications Reviews

Overview Details for VK-7313-201-4-04

VB: 1/2 in, 3W Mix, Globe, NPT, BR, 4.4 cv, 150 PSI; Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, NC, Air NPT, Linear, N1

Valve Assembly:
  • Body Size: 1/2 in
  • Configuration: 3-Way Mixing
  • Type: Globe
  • Connection: NPT

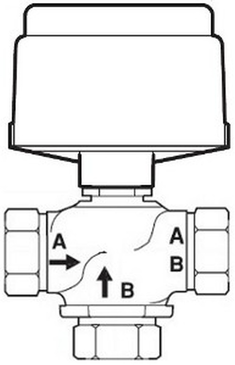

  • Stem Flow Action: Stem down flow A to AB
  • Material Trim: Brass
  • Flow Coefficient: 4.4 cv
  • Close-Off Pressure: 150 PSI
  • Actuator Type: Pneumatic
  • Control Signal: 2-Position (On/Off), Proportional
  • Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Up/Retract A closed
  • Leads and Connections: 1/8 in Air NPT
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 1
Assembly Components:
  • Valve Body: VB-7313-0-4-04
  • Valve Range: Venta
  • Valve Linkage: AV-7400
  • Actuator: MK-2690
  • Actuator Comment: Comes with a yellow 3 to 7 PSIG spring

Product Alert: Not for use with steam

Specifications

Item Number VK-7313-201-4-04
Brand Schneider Electric
Control Input Modulating
Control Valves Type Globe Valve
CV / GPM 4.41 Cv
End Switch No
Housing NEMA 1
Spring Return Spring Return
Valve Size 0.5" - 3 Way
Voltage
