VK-7312-203-4-04 | VB: 5/8 in, 3W Mix, Globe, FLR, BR, 4.4 cv, 5 PSI; Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, NC, Air NPT, Linear, N1 | Schneider Electric

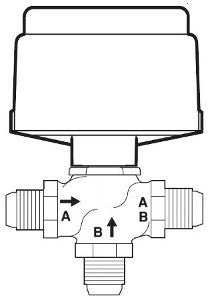

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VK-7312-203-4-04
Overview
Details for VK-7312-203-4-04
VB: 5/8 in, 3W Mix, Globe, FLR, BR, 4.4 cv, 5 PSI; Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, NC, Air NPT, Linear, N1
Valve Assembly:- Body Size: 5/8 in
- Configuration: 3-Way Mixing
- Type: Globe
- Connection: Flare
- Stem Flow Action: Stem down flow A to AB
- Material Trim: Brass
- Flow Coefficient: 4.4 cv
- Close-Off Pressure: 5 PSI
- Actuator Type: Pneumatic
- Control Signal: 2-Position (On/Off), Proportional
- Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
- Loss of Power Type: Spring Return
- Loss of Power Position: Up/Retract A closed
- Leads and Connections: 1/8 in Air NPT
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Valve Body: VB-7312-0-4-04
- Valve Range: Venta
- Valve Linkage: AV-7400
- Actuator: MK-2690
- Actuator Comment: Comes with a blue 8 to 13 PSIG spring
Product Alert: Not for use with steam
Specifications
| Item Number | VK-7312-203-4-04 |
| Brand | Schneider Electric |
| Control Input | Modulating |
| Control Valves Type | Globe Valve |
| CV / GPM | 4.41 Cv |
| End Switch | No |
| Housing | NEMA 1 |
| Spring Return | Spring Return |
| Valve Size | 5/8" - 3 Way |
| Voltage |
