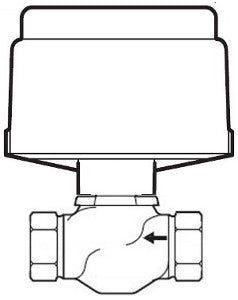

VK-7263-203-4-05 | VB: 3/4 in, 2W, Globe, STR, NPT, UC, BR, 5.5 cv, 60 PSI; Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, NO, Air NPT, Linear, N1 | Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VK-7263-203-4-05
Overview
Details for VK-7263-203-4-05
VB: 3/4 in, 2W, Globe, STR, NPT, UC, BR, 5.5 cv, 60 PSI; Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, NO, Air NPT, Linear, N1
Valve Assembly:- Body Size: 3/4 in
- Configuration: 2-Way
- Type: Globe
- Body Pattern: Straightway
- Connection: NPT
- Stem Flow Action: Stem up A open
- Material Trim: Brass
- Flow Coefficient: 5.5 cv
- Close-Off Pressure: 60 PSI
- Actuator Type: Pneumatic
- Control Signal: 2-Position (On/Off), Proportional
- Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Leads and Connections: 1/8 in Air NPT
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Valve Body: VB-7263-0-4-05
- Valve Range: Venta
- Valve Linkage: AV-7400
- Actuator: MK-2690
- Actuator Comment: Comes with a blue 8 to 13 PSIG spring
Specifications
| Item Number | VK-7263-203-4-05 |
| Brand | Schneider Electric |
| Control Input | Modulating |
| Control Valves Type | Globe Valve |
| CV / GPM | 5.5 Cv |
| End Switch | No |
| Housing | NEMA 1 |
| Spring Return | Spring Return |
| Valve Size | 0.75" - 2 Way |
| Voltage |
