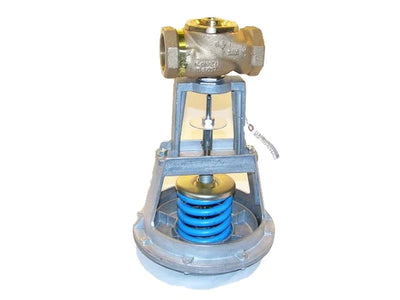

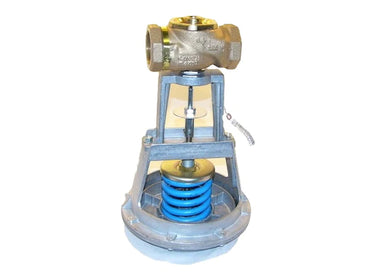

VK-7223-302-4-10 | VB: 1-1/2 in, 2W, Globe, STR, NPT, UC, BR, 28 cv, 10 PSI; Act (MK-4611): Pneu, 2Pos/Prop, 5-10 PSIG, SR, NC, Air NPT, Linear, N1 | Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VK-7223-302-4-10
Documents and manuals
Schneider Electric VK-7223-302-4-10 Documents
Overview
Details for VK-7223-302-4-10
VB: 1-1/2 in, 2W, Globe, STR, NPT, UC, BR, 28 cv, 10 PSI; Act (MK-4611): Pneu, 2Pos/Prop, 5-10 PSIG, SR, NC, Air NPT, Linear, N1
Valve Assembly:- Body Size: 1-1/2 in
- Configuration: 2-Way
- Type: Globe
- Body Pattern: Straightway
- Connection: NPT
- Stem Flow Action: Stem up A closed
- Material Trim: Brass
- Flow Coefficient: 28 cv
- Close-Off Pressure: 10 PSI
- Actuator Type: Pneumatic
- Control Signal: 2-Position (On/Off), Proportional
- Control Spring Range: 5 to 10 PSIG
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Leads and Connections: 1/8 in Air NPT
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Valve Body: VB-7223-0-4-10
- Valve Range: Venta
- Valve Linkage: AV-401
- Actuator: MK-4611
Specifications
| Item Number | VK-7223-302-4-10 |
| Brand | Schneider Electric |
| Control Input | Modulating |
| Control Valves Type | Globe Valve |
| CV / GPM | 28 Cv |
| End Switch | No |
| Housing | NEMA 1 |
| Spring Return | Spring Return |
| Valve Size | 1.5" - 2 Way |
| Voltage |
