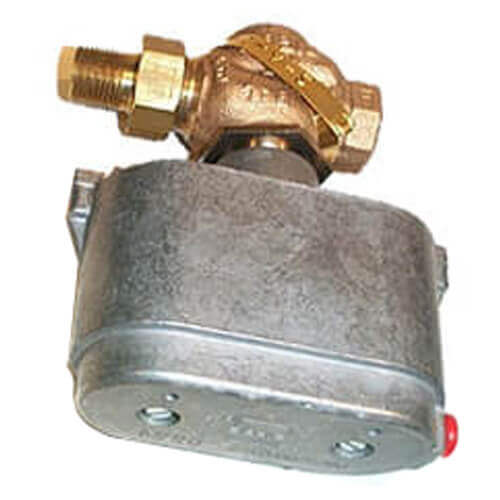

VK-7213-203-4-09 | VB: 1-1/4 in, 2W, Globe, STR, NPT, UO, BR, 20 cv, 15 PSI; Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, NO, Air NPT, Linear, N1 | Schneider Electric

VB: 1-1/4 in, 2W, Globe, STR, NPT, UO, BR, 20 cv, 15 PSI; Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, NO, Air NPT, Linear, N1

• Body Size: 1-1/4 in
• Configuration: 2-Way
• Type: Globe
• Body Pattern: Straightway
• Connection: NPT
• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Flow Coefficient: 20 cv
• Close-Off Pressure: 15 PSI
• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally open
• Leads and Connections: 1/8 in Air NPT
• Mechanical Movement: Linear
• Protection Rating: NEMA 1

• Valve Body: VB-7213-0-4-09
• Valve Range: Venta
• Valve Linkage: AV-7400
• Actuator: MK-2690
• Actuator Comment: Comes with a blue 8 to 13 PSIG spring
