VFF-631C-556D-L-12 | VB: 2-1/2 in, 3W Mix/Div, BFV, FLG, Full, FE, 282 cv, 175 PSI; Act (2x MF41-7153): Elec, Float, SR, NO, 24 VAC/22-30 VDC, App, 133 in-lb, Dual act | Schneider Electric

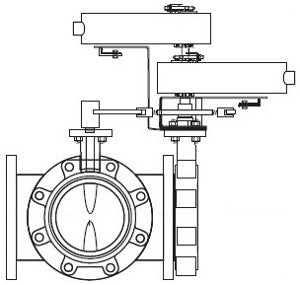

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VFF-631C-556D-L-12

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric VFF-631C-556D-L-12 Documents

Datasheet More Info

Overview

Details for VFF-631C-556D-L-12

VB: 2-1/2 in, 3W Mix/Div, BFV, FLG, Full, FE, 282 cv, 175 PSI; Act (2x MF41-7153): Elec, Float, SR, NO, 24 VAC/22-30 VDC, App, 133 in-lb, Dual act

Valve Assembly:

Body Size: 2-1/2 in
Configuration: 3-Way Mixing/Diverting
Type: Butterfly
Connection: Flanged
Body Style: Lug
Disc Shape: Full
Material Disc: Ductile Iron - Nylon 11 Coated
Flow Coefficient: 282 cv
Close-Off Pressure: 175 PSI
Actuator Type: Electric
Control Signal: Floating
Loss of Power Type: Spring Return
Loss of Power Position: Normally open
Power Input Voltage: 24 VAC or 22 to 30 VDC
Leads and Connections: 3 ft Appliance
Torque: 133 in-lb
Mechanical Movement: Rotary
Additional Features: Dual actuator
Protection Rating: NEMA 1, NEMA 2

Assembly Components:

Valve Body: VBF-6307-0-L-12
Valve Linkage: Included with assembly
Actuator: MF41-7153+MF41-7153
Actuator Range: SmartX Actuator
Actuator Comment: NEMA 1 (IEC IP30). NEMA 2 (IEC IP54) with conduit connector in the down position.

Product Alert: Not for use with steam.
