VF-7313-536-4-08 | VB: 1 in, 3W Mix, Globe, NPT, BR, 14 cv, 125 PSI; Act (MF40-7043): Elec, Float, SR, NC, 24 VAC/VDC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2, SmartX | Schneider Electric

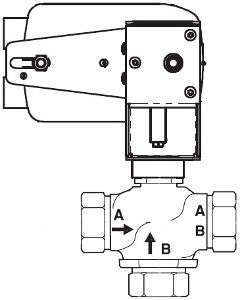

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VF-7313-536-4-08
Overview
Details for VF-7313-536-4-08
VB: 1 in, 3W Mix, Globe, NPT, BR, 14 cv, 125 PSI; Act (MF40-7043): Elec, Float, SR, NC, 24 VAC/VDC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2, SmartX
Valve Assembly:- Body Size: 1 in/li>
- Configuration: 3-Way Mixing
- Type: Globe
- Connection: NPT
- Stem Flow Action: Stem down flow A to AB
- Material Trim: Brass
- Flow Coefficient: 14 cv
- Close-Off Pressure: 125 PSI
- Actuator Type: Electric
- Control Signal: Floating
- Loss of Power Type: Spring Return
- Loss of Power Position: Up/Retract A closed
- Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
- Leads and Connections: 3 ft Plenum
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Valve Body: VB-7313-0-4-08
- Valve Range: Venta
- Valve Linkage: AV-611
- Actuator: MF40-7043
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam
Specifications
Item Number | VF-7313-536-4-08 |
Brand | Schneider Electric |
Control Input | Floating Point |
Control Valves Type | Globe Valve |
CV / GPM | 14 Cv |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 1" - 3 Way |
Voltage | 24V |
