VBS-9263-0-4-02 | VB: 1/2 in, 2W, Globe, NPT, UC, SS, 1.3 cv | Schneider Electric

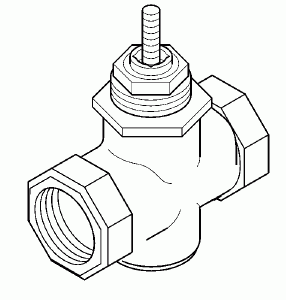

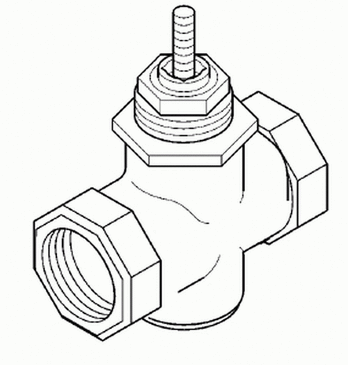

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VBS-9263-0-4-02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric VBS-9263-0-4-02 Documents

Datasheet More Info

Overview

Details for VBS-9263-0-4-02

VB: 1/2 in, 2W, Globe, NPT, UC, SS, 1.3 cv

Valve Body (VBS-9263-0-4-02):

Body Size: 1/2 in
Configuration: 2-Way
Type: Globe
Connection: NPT
Stem Flow Action: Stem up A closed
Material Trim: Stainless Steel
Flow Coefficient: 1.3 cv
Control Media: Steam and Water
Product Line: Schneider Electric
Product Series: VBS-9200

The SmartX PIBCV range is a comprehensive selection of automatic balancing and control valves that provide flow limitation, with full control authority over hydronic regulation. Automatic balancing within PIBCV valves provide stable flow regulation regardless of pressure fluctuations in the system and all valves have an adjustable flow limitation set point. The control valve portion of the PIBCV further regulates the water/ glycol flow from close-off up to the maximum flow limit setting. Typical applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels.
