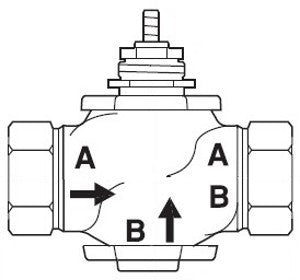

VB-7263-0-4-33 | VB: 1/2 in, 2W, Globe, STR, NPT, UC, SS, 0.22 cv, Venta | Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VB-7263-0-4-33
Overview Details for VB-7263-0-4-33
VB: 1/2 in, 2W, Globe, STR, NPT, UC, SS, 0.22 cv, Venta
Valve Body (VB-7263-0-4-33):- Body Size: 1/2 in
- Configuration: 2-Way
- Type: Globe
- Body Pattern: Straightway
- Connection: NPT
- Stem Flow Action: Stem up A closed
- Material Trim: Stainless Steel
- Flow Coefficient: 0.22 cv
- Control Media: Glycol 25 to 60%, Steam, Water
- Product Line: Schneider Electric
- Product Range: Venta
- Product Series: VB-7200
Specifications
Item Number | VB-7263-0-4-33 |
Brand | Schneider Electric |
Control Input | |
Control Valves Type | Globe Valve |
CV / GPM | 0.22 Cv |
End Switch | No |
Housing | NEMA 1 |
Spring Return | |
Valve Size | 0.5" - 2 Way |
Voltage |
