Documents: VB-7253-0-4-09

Datasheet More Info

VB-7253-0-4-09 | Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up open, stainless steel trim with soft seats, 20 Cv | Schneider Electric

Brand: Schneider ElectricSKU: VB-7253-0-4-09

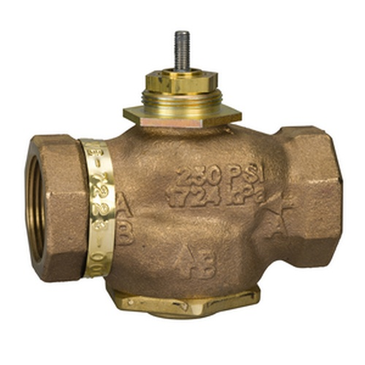

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VB-7253-0-4-09

Jump to: Overview & Specifications Reviews

Overview Details for VB-7253-0-4-09

Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up open, stainless steel trim with soft seats, 20 Cv

Valve Body (VB-7253-0-4-09):

Body Size: 1-1/4 in
Configuration: 2-Way
Type: Globe
Body Pattern: Straightway
Connection: NPT
Stem Flow Action: Stem up A open
Material Trim: Stainless Steel
Flow Coefficient: 20 cv
Control Media: Glycol 25 to 60%, Steam, Water
Product Line: Schneider Electric
Product Range: Venta
Product Series: VB-7200

VB-7253 series single seat, stem down to close, two-way valves control water from 20 to 340°F (-7 to 171°C) or steam to 340°F (171°C) max. in heating or air conditioning systems. These valves have stainless steel trim with a Teflon® disc. They are used for two-position or proportional control applications. Valve assemblies require an actuator and a valve linkage that must be purchased separately

Specifications

Item Number	VB-7253-0-4-09
Brand	Schneider Electric
Control Input
Control Valves Type	Globe Valve
CV / GPM	20 Cv
End Switch	No
Housing	NEMA 1
Spring Return
Valve Size	1.25" - 2 Way
Voltage
