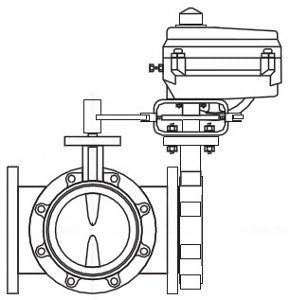

VAUS-630C-F20-L-16 | VB: 6 in, 3W Mix/Div, BFV, FLG, Under, FE, 1850 cv, 50 PSI; Act (BRY-S70-24-0121-H): Elec, 2Pos, NSR, 24 VAC, TB, 600 in-lb, SPDT, HTR | Schneider Electric

VB: 6 in, 3W Mix/Div, BFV, FLG, Under, FE, 1850 cv, 50 PSI; Act (BRY-S70-24-0121-H): Elec, 2Pos, NSR, 24 VAC, TB, 600 in-lb, SPDT, HTR

• Body Size: 6 in
• Configuration: 3-Way Mixing/Diverting
• Type: Butterfly
• Connection: Flanged
• Body Style: Lug
• Disc Shape: Undercut
• Material Disc: Ductile Iron - Nylon 11 Coated
• Flow Coefficient: 1850 cv
• Close-Off Pressure: 50 PSI
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Non-Spring Return
• Loss of Power Position: Fail in place
• Power Input Voltage: 24 VAC
• Leads and Connections: Terminal Block
• Torque: 600 in-lb
• Mechanical Movement: Rotary
• Auxiliary Switch: 2 SPDT
• Additional Features: Heater
• Protection Rating: NEMA 4

• Valve Body: VBU-6301-0-L-16
• Valve Linkage: Included with assembly
• Actuator: BRY-S70-24-0121-H
