VAFS-632C-556D-L-13 | VB: 3 in, 3W Mix/Div, BFV, FLG, Full, FE, 461 cv, 175 PSI; Act (2x MA41-7153-502): Elec, 2Pos, SR, NC, 24 VAC/22-30 VDC, App, 133 in-lb, SPDT | Schneider Electric

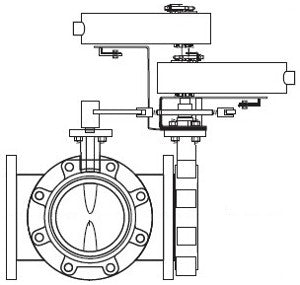

VB: 3 in, 3W Mix/Div, BFV, FLG, Full, FE, 461 cv, 175 PSI; Act (2x MA41-7153-502): Elec, 2Pos, SR, NC, 24 VAC/22-30 VDC, App, 133 in-lb, SPDT

• Body Size: 3 in
• Configuration: 3-Way Mixing/Diverting
• Type: Butterfly
• Connection: Flanged
• Body Style: Lug
• Disc Shape: Full
• Material Disc: Ductile Iron - Nylon 11 Coated
• Flow Coefficient: 461 cv
• Close-Off Pressure: 175 PSI
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally closed
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Leads and Connections: 3 ft Appliance
• Torque: 133 in-lb
• Mechanical Movement: Rotary
• Auxiliary Switch: 2 SPDT
• Additional Features: Dual actuator
• Protection Rating: NEMA 1, NEMA 2

• Valve Body: VBF-6301-0-L-13
• Valve Linkage: Included with assembly
• Actuator: MA41-7153+MA41-7153-502
• Actuator Range: SmartX Actuator
• Actuator Comment: NEMA 1 (IEC IP30). NEMA 2 (IEC IP54) with conduit connector in the down position.
