VAF-632C-556-L-11 | VB: 2 in, 3W Mix/Div, BFV, FLG, Full, FE, 144 cv, 175 PSI; Act (MA41-7153): Elec, 2Pos, SR, NC, 24 VAC/22-30 VDC, App, 133 in-lb | Schneider Electric

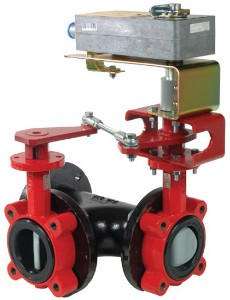

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VAF-632C-556-L-11
Overview
Details for VAF-632C-556-L-11
VB: 2 in, 3W Mix/Div, BFV, FLG, Full, FE, 144 cv, 175 PSI; Act (MA41-7153): Elec, 2Pos, SR, NC, 24 VAC/22-30 VDC, App, 133 in-lb
Valve Assembly:- Body Size: 2 in
- Configuration: 3-Way Mixing/Diverting
- Type: Butterfly
- Connection: Flanged
- Body Style: Lug
- Disc Shape: Full
- Material Disc: Ductile Iron - Nylon 11 Coated
- Flow Coefficient: 144 cv
- Close-Off Pressure: 175 PSI
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC or 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Torque: 133 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1, NEMA 2
- Valve Body: VBF-6301-0-L-11
- Valve Linkage: Included with assembly
- Actuator: MA41-7153
- Actuator Range: SmartX Actuator
- Actuator Comment: NEMA 1 (IEC IP30). NEMA 2 (IEC IP54) with conduit connector in the down position.
Product Alert: Not for use with steam.
Specifications
Item Number | VAF-632C-556-L-11 |
Brand | Schneider Electric |
