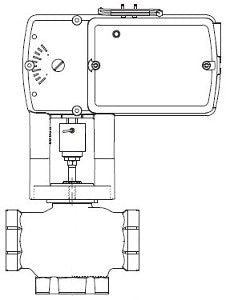

VA-7323-804-4-10 | VB: 1-1/2 in, 3W Div, Globe, NPT, UO, BR, 28 cv, 250 PSI; Act (MA51-7103-100): Elec, 2Pos, SR, NC, 24 VAC/VDC, Plen, 105 lbf, Linear, N2 | Schneider Electric

VB: 1-1/2 in, 3W Div, Globe, NPT, UO, BR, 28 cv, 250 PSI; Act (MA51-7103-100): Elec, 2Pos, SR, NC, 24 VAC/VDC, Plen, 105 lbf, Linear, N2

• Body Size: 1-1/2 in
• Configuration: 3-Way Diverting
• Type: Globe
• Connection: NPT
• Stem Flow Action: Stem up flow B to AB
• Material Trim: Brass
• Flow Coefficient: 28 cv
• Close-Off Pressure: 250 PSI
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Spring Return
• Loss of Power Position: Up/Retract A closed
• Power Input Voltage: 24 VAC/VDC, 20 to 30 VDC
• Leads and Connections: 3 ft Plenum
• Force: 105 lbf
• Mechanical Movement: Linear
• Protection Rating: NEMA 2

• Valve Body: VB-7323-0-4-10
• Valve Range: Venta
• Valve Linkage: None, tool-less connection
• Actuator: MA51-7103-100
• Actuator Range: SmartX Actuator
