VA-7223-592-4-11 | VB: 2 in, 2W, Globe, STR, NPT, UC, BR, 40 cv, 65 PSI; Act (MA51-7200): Elec, 2Pos, SR, NC, 120 VAC, App, 220 lbf, Linear, N2, SmartX | Schneider Electric

Schneider Electric | VA-7223-592-4-11

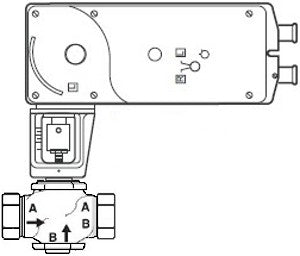

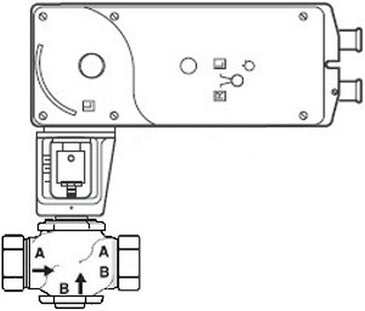

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA-7223-592-4-11

Documents and manuals

Schneider Electric VA-7223-592-4-11 Documents

Overview

Details for VA-7223-592-4-11

VB: 2 in, 2W, Globe, STR, NPT, UC, BR, 40 cv, 65 PSI; Act (MA51-7200): Elec, 2Pos, SR, NC, 120 VAC, App, 220 lbf, Linear, N2, SmartX

Valve Assembly:
  • Body Size: 2 in
  • Configuration: 2-Way
  • Type: Globe
  • Body Pattern: Straightway
  • Connection: NPT
  • Stem Flow Action: Stem up A closed
  • Material Trim: Brass
  • Flow Coefficient: 40 cv
  • Close-Off Pressure: 65 PSI
  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Power Input Voltage: 120 VAC
  • Leads and Connections: 3 ft Appliance
  • Force: 220 lbf
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 2
Assembly Components:
  • Valve Body: VB-7223-0-4-11
  • Valve Range: Venta
  • Valve Linkage: None, tool-less connection
  • Actuator: MA51-7200
  • Actuator Range: SmartX Actuator

Specifications

Item Number VA-7223-592-4-11
Brand Schneider Electric
Control Input On/Off
Control Valves Type Globe Valve
CV / GPM 40.01 Cv
End Switch No
Housing NEMA 1
Spring Return Spring Return
Valve Size 2" - 2 Way
Voltage 120V
