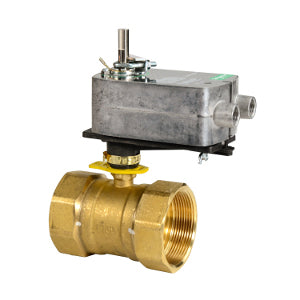

VA-2253-526-9-63 | VB: 2 in, 2W, Ball, NPT, SS, 71.1 cv, No Steam, 70 PSI; Act (MA40-7043): Elec, 2Pos, SR, NC, 24 VAC, 22-30 VDC, App, 35 in-lb, Rotary, N2, SmartX | Schneider Electric

VB: 2 in, 2W, Ball, NPT, SS, 71.1 cv, No Steam, 70 PSI; Act (MA40-7043): Elec, 2Pos, SR, NC, 24 VAC, 22-30 VDC, App, 35 in-lb, Rotary, N2, SmartX

• Body Size: 2 in
• Configuration: 2-Way
• Type: Ball
• Connection: NPT
• Material Trim: Stainless Steel
• Flow Coefficient: 71.1 cv
• Close-Off Pressure: 70 PSI
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally closed
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Leads and Connections: 3 ft Appliance
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2

• Valve Body: VB-2253-500-9-63
• Valve Linkage: Linkage included with valve body
• Actuator: MA40-7043
• Actuator Range: SmartX
• Actuator Comment: Actuator mounted right side up
