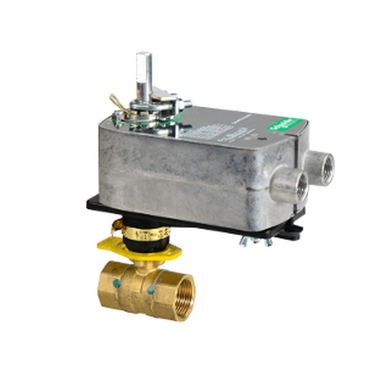

VA-2213-532-9-27 | VB: 1 in, 2W, Ball, NPT, BR, 54.2 cv, No Steam, No Disc, 100 PSI; Act (MA40-7040): Elec, 2Pos, SR, NO, 120 VAC, App, 35 in-lb, R | Schneider Electric

VB: 1 in, 2W, Ball, NPT, BR, 54.2 cv, No Steam, No Disc, 100 PSI; Act (MA40-7040): Elec, 2Pos, SR, NO, 120 VAC, App, 35 in-lb, R

• Body Size: 1 in/li>
• Configuration: 2-Way
• Type: Ball
• Connection: NPT
• Material Trim: Brass
• Flow Coefficient: 54.2 cv
• Close-Off Pressure: 100 PSI
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally open
• Power Input Voltage: 120 VAC
• Leads and Connections: 3 ft Appliance
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2

• Valve Body: VB-2213-500-9-27
• Valve Linkage: Linkage included with valve body
• Actuator: MA40-7040
• Actuator Range: SmartX
• Actuator Comment: Actuator mounted left side up
