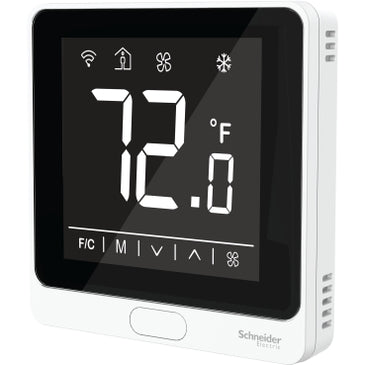

TH907-ZP-W | SpaceLogic TH907 Series Thermostat, Touchscreen, Zigbee, Occupancy Sensor, Auxiliary Input, White | Schneider Electric

Brand: Schneider ElectricSKU: TH907-ZP-W

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TH907-ZP-W

Jump to: Overview & Specifications Reviews

Overview Details for TH907-ZP-W

SpaceLogic TH907 Series Thermostat, Touchscreen, Zigbee, Occupancy Sensor, Auxiliary Input, White

The TH907 Series thermostats are optimized for office building, hotel and residential terminal HVAC control. The TH907 Series is ideal for PTAC, FCU, Heat Pump and Gas/Oil Furnace applications. The device includes an optimum black glass display with capacitive buttons on a white base.

Specifications

Product or Component Type: Thermostat
Device Application: Air-conditioning;Fan;Low voltage heat pump;Furnace
Product Certifications: UL
communication port protocol: Modbus
Display Type: Backlit LCD screen
IP Degree of Protection: IP30
Depth: 4.72 in (120 mm)
Height: 1.04 in (26.5 mm)
Width: 4.72 in (120 mm)
Network Frequency: 50 Hz;60 Hz
Ambient air temperature for operation: 32…122 °F (0…50 °C)
Standards: UL 60730-1;UL 60730-2-9;FCC Part 15 class B;EN/IEC 60730-1;EN/IEC 60730-2-9
Temperature Measurement Accuracy: +/- 0.5 %
Color: Black;Housing White
Relative Humidity: 5…95 %
Sensor Type: Temperature
[Us] Rated Supply Voltage: 24 V AC
product name: SpaceLogic TH900
device short name: TH907
range: SpaceLogic
Product Specific Application: 2-pipe system;4-pipe system;Cooling;Heating
Information Displayed: Ambient room temperature 0 to 50 °C;Time;Day;Temperature alarm;Current program;Twelve-hour time;Communication status ok
max power consumption in W: 0.5 W
Market Segment: Small buildings;Hotel;Healthcare;Residential
connections - terminals: Connector back) AWG 18...AWG 14) - rigid or stranded
function available: Setpoint adjustment;Fan speed control;Mode selection;Economiser;Monitor occupancy status;Extreme temperature protection
output voltage: 24 V AC 3 A signalling circuit;24 V AC 1 A load
Number of Outputs: 1 proportional
pollution degree: 2
temperature setting range: 41…95 °F (5…35 °C)
control type: touch screen;fan speed control;local control
GTIN: 3606481681638
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5.0 cm)
Package 1 Width: 5.04 in (12.8 cm)
Package 1 Length: 5.28 in (13.4 cm)
Package 1 Weight: 13.62 oz (386.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 28
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 27.14 lb(US) (12.31 kg)
Unit Type of Package 3: P12
Number of Units in Package 3: 672
Package 3 Height: 41.34 in (105.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 47.24 in (120.0 cm)
Package 3 Weight: 684.29 lb(US) (310.39 kg)
