TH903-DM-W | SpaceLogic TH903 Series Thermostat, LCD/Buttons, 7-day programmable, Modbus, Auxiliary Input, White | Schneider Electric

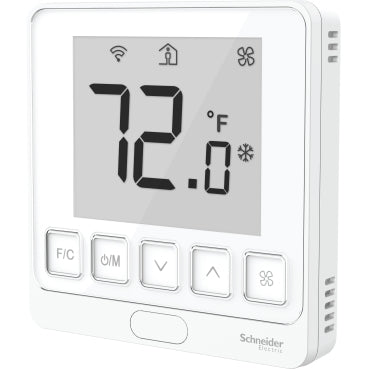

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TH903-DM-W
Overview
Details for TH903-DM-W
SpaceLogic TH903 Series Thermostat, LCD/Buttons, 7-day programmable, Modbus, Auxiliary Input, White
The TH903 Series thermostats are optimized for office building, hotel and residential terminal HVAC control. The TH903 Series is ideal for PTAC, Heat Pump and Gas/Oil Furnace applications.This device includes a white glass display with mechanical buttons on a white base.Specifications
- Product or Component Type
- Thermostat
- Device Application
- Air-conditioning;Low voltage heat pump;Furnace
- Product Certifications
- UL
- communication port protocol
- -
- Display Type
- Backlit LCD screen
- IP Degree of Protection
- IP30
- Depth
- 4.72 in (120 mm)
- Height
- 1.04 in (26.5 mm)
- Width
- 4.72 in (120 mm)
- Network Frequency
- 50 Hz;60 Hz
- Ambient air temperature for operation
- 32…122 °F (0…50 °C)
- Standards
- UL 60730-1;UL 60730-2-9;FCC Part 15 class B;EN/IEC 60730-1;EN/IEC 60730-2-9
- Temperature Measurement Accuracy
- +/- 0.5 %
- Color
- White
- Relative Humidity
- 5…95 %
- Sensor Type
- Temperature
- [Us] Rated Supply Voltage
- 24 V AC
- product name
- SpaceLogic TH900
- device short name
- TH903
- range
- SpaceLogic
- Product Specific Application
- 2-pipe system;4-pipe system;3-stage heating;2-stage cooling
- Information Displayed
- Ambient room temperature 0 to 50 °C;Time;Day;Temperature alarm;Current program;Twelve-hour time
- max power consumption in W
- 0.5 W
- Market Segment
- Small buildings;Hotel;Healthcare;Residential
- connections - terminals
- Connector back) AWG 18...AWG 14) - rigid or stranded
- Number of Inputs
- 1 card reader
- function available
- Setpoint adjustment;Mode selection;Economiser;Monitor occupancy status;Extreme temperature protection
- output voltage
- 24 V AC 3 A signalling circuit;24 V AC 1 A load
- pollution degree
- 2
- temperature setting range
- 41…95 °F (5…35 °C)
- control type
- 5 buttons;local control
- GTIN
- 3606481681522
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.97 in (5.0 cm)
- Package 1 Width
- 5.04 in (12.8 cm)
- Package 1 Length
- 5.28 in (13.4 cm)
- Package 1 Weight
- 15.10 oz (428.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 28
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 29.72 lb(US) (13.48 kg)
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 672
- Package 3 Height
- 41.34 in (105.0 cm)
- Package 3 Width
- 31.50 in (80.0 cm)
- Package 3 Length
- 47.24 in (120.0 cm)
- Package 3 Weight
- 746.53 lb(US) (338.62 kg)
