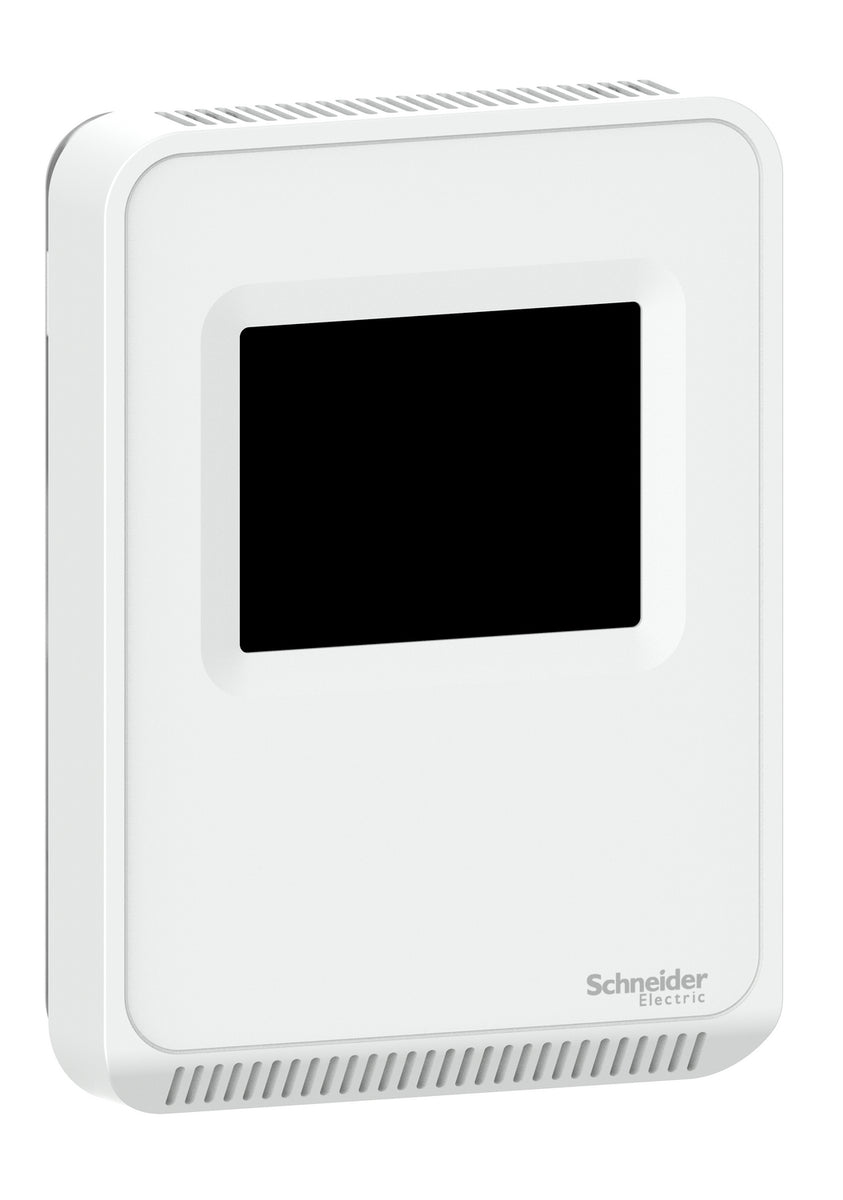

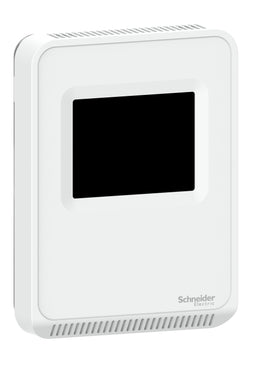

SLPSTXX | SpaceLogic SLA Series Temperature Sensor, Color Touchscreen, BACnet MSTP/Modbus Outputs, Matte White Housing | Schneider Electric

Brand: Schneider ElectricSKU: SLPSTXX

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLPSTXX

Jump to: Overview & Specifications Reviews

Overview Details for SLPSTXX

SpaceLogic SLA Series Temperature Sensor, Color Touchscreen, BACnet MSTP/Modbus Outputs, Matte White Housing

The SpaceLogic SLP Series of wall temperature sensors for rooms is a versatile platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a color touchscreen with control and setpoint menu. This air quality sensor include a temperature element. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.

Specifications

Product or component type: Sensor
Type of measurement: Temperature
device application: HVAC
Temperature control
Fan speed controller
display size: 2.4 inch
Location: Living space
Mounting support: Wall-mount
Depth: 24 mm
Height: 85 mm
Width: 115 mm
Network frequency: 50 Hz
60 Hz
Standards: UL 916
FCC part 15 class B
Colour: White
Ambient air temperature for operation: 0…50 °C
Relative humidity: 0…95 %
Sensor type: Transmitter
Product name: SpaceLogic Room Unit
function available: With temperature sensor
Surface finish: Matt
Range: SpaceLogic
device presentation: Complete product
information displayed: Temperature
Temperature set point
Menu-driven user interface
Connections - terminals: Screw terminal - 2 cable(s) (AWG 24...AWG 18)
Range compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Control type: tactile
Material: ABS (acrylonitrile butadiene-styrene)
[Us] rated supply voltage: 24 V AC 50...60 Hz
20...30 V DC
Display type: Colour touchscreen - 240 x 300 pixels
Communication port protocol: BACnet
Modbus
Communication port support: RS485
Measurement accuracy: Typical +/- 0.2 %
Temperature setting range: 10…35 °C
0…50 °C
Measurement range: 0...50 °C temperature
Product certifications: CE conforming to EN 61000-6-2
CE conforming to EN 61000-6-3
CE conforming to EN 61326-1
RCM
EAC
ICES-003
CULus
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.8 cm
Package 1 Width: 9.67 cm
Package 1 Length: 14.0 cm
Package 1 Weight: 181.82 g
