SLPBXXX | SpaceLogic SLA Series Temperature Sensor, Blank Cover, BACnet MSTP/Modbus Outputs, Optimum Black Housing | Schneider Electric

Brand: Schneider ElectricSKU: SLPBXXX

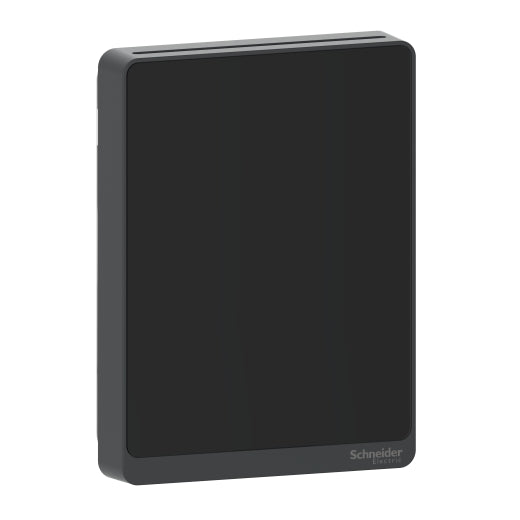

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLPBXXX

Jump to: Overview & Specifications Reviews

Overview Details for SLPBXXX

SpaceLogic SLA Series Temperature Sensor, Blank Cover, BACnet MSTP/Modbus Outputs, Optimum Black Housing

The SpaceLogic SLP Series of wall temperature sensors for rooms is a versatile platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is optimum black. No user interface, the device is protected by a blank cover. This air quality sensor include a temperature element. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.

Specifications

Product or component type: Sensor
Type of measurement: Temperature
device application: HVAC
Temperature control
Fan speed controller
Location: Living space
Mounting support: Wall-mount
Depth: 23.7 mm
Height: 85 mm
Width: 115 mm
Network frequency: 50 Hz
60 Hz
Standards: UL 916
FCC part 15 class B
Colour: White
Ambient air temperature for operation: 0…50 °C
Relative humidity: 0…95 %
Sensor type: Transmitter
Product name: SpaceLogic Room Unit
function available: With temperature sensor
Surface finish: Glossy
Range: SpaceLogic
device presentation: Complete product
Connections - terminals: Screw terminal - 2 cable(s) (AWG 24...AWG 18)
Range compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Material: ABS (acrylonitrile butadiene-styrene)
[Us] rated supply voltage: 24 V AC 50...60 Hz
20...30 V DC
Display type: Without display
Communication port protocol: BACnet
Modbus
Communication port support: RS485
Measurement accuracy: Typical +/- 0.2 %
Temperature setting range: 10…35 °C
0…50 °C
Measurement range: 0...50 °C temperature
Product certifications: CE conforming to EN 61000-6-2
CE conforming to EN 61000-6-3
CE conforming to EN 61326-1
RCM
EAC
ICES-003
CULus
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.8 cm
Package 1 Width: 9.67 cm
Package 1 Length: 14.0 cm
Package 1 Weight: 181.82 g
