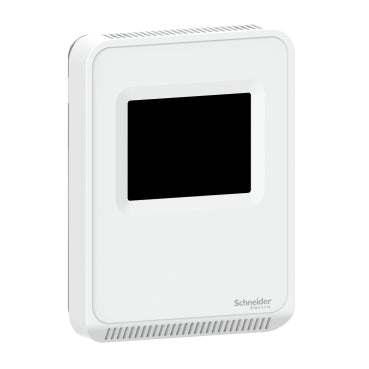

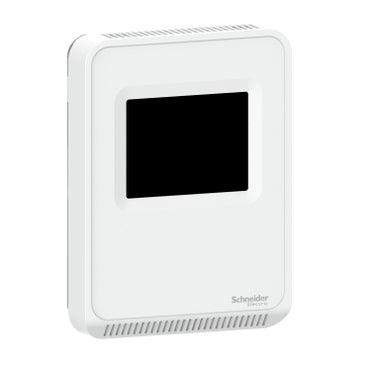

SLASTXX | SpaceLogic SLA Series Temperature Sensor, Room, Color Touchscreen, Analog Outputs, Matte White Housing | Schneider Electric

Brand: Schneider ElectricSKU: SLASTXX

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLASTXX

Jump to: Overview & Specifications Reviews

Overview Details for SLASTXX

SpaceLogic SLA Series Temperature Sensor, Room, Color Touchscreen, Analog Outputs, Matte White Housing

The SpaceLogic SLA Series of wall temperature sensors for rooms is a versatile platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc or 0 to 10Vdc outputs. Housings are available in Medium matte white and Optimum faces available in black and white. All housing types are available with three user interface options: touchscreen, LCD with three buttons and blank. The SpaceLogic SLA Series of wall temperature sensors for rooms is a versatile platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a color touchscreen with control and setpoint menu. This air quality sensor include a temperature element. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.

Specifications

Product or Component Type: Sensor
Type of Measurement: Temperature
Device Application: HVAC;Temperature control;Fan speed controller
Display size: 2.4 inch
Location: Living Space
Mounting Support: Wall Mount
Depth: 0.94 in (24 mm)
Height: 3.35 in (85 mm)
Width: 4.53 in (115 mm)
Network Frequency: 50 Hz;60 Hz
Output Type: Analog
Standards: UL 916;FCC Part 15 class B
Color: White
Ambient Air Temperature for Operation: 32…122 °F (0…50 °C)
Relative Humidity: 0…95 %
Sensor Type: Transmitter
product name: SpaceLogic Room Unit
Function Available: With temperature sensor
Surface Finish: Matte
range: SpaceLogic
device presentation: Complete product
Information Displayed: Temperature;Temperature set point;Menu-driven user interface
Communication Network Type: Wired
connections - terminals: Screw terminal - 2 AWG 24...AWG 18)
output voltage: 0...10 V fan speed;0...5 V configurable analog output;0...10 V configurable analog output
Number of Outputs: 1 fan;1 configurable
range compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
control type: tactile
Material: ABS (acrylonitrile butadiene-styrene)
[Us] rated supply voltage: 24 V AC 50-60 Hz;20...30 V DC
display type: Colour touchscreen - 240 x 300 pixels
communication port protocol: -
measurement accuracy: Typical +/- 0.2 %
temperature setting range: 50…95 °F (10…35 °C);32…122 °F (0…50 °C)
measurement range: 0...50 °C temperature
product certifications: CE EN 61000-6-2;CE EN 61000-6-3;CE EN 61326-1;RCM;EAC;ICES-003;CULus
GTIN: 3606481900517
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.89 in (4.8 cm)
Package 1 Width: 3.81 in (9.67 cm)
Package 1 Length: 5.51 in (14.0 cm)
Package 1 Weight: 6.41 oz (181.82 g)
