S144A | 6.0A LSIG CIRCUIT BREAKER MICROLOGIC TRIP UNIT | Square D by Schneider Electric

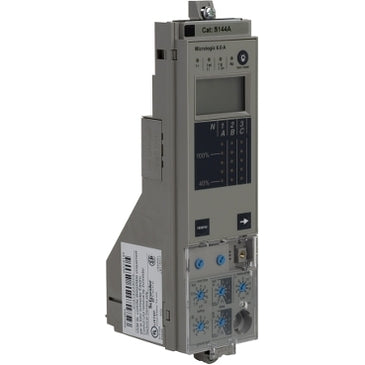

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to S144A
Overview
Details for S144A
6.0A LSIG CIRCUIT BREAKER MICROLOGIC TRIP UNIT
Square D PowerPact P, M and R-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either basic electronic trip system or Micrologic electronic trip units. PowerPact P- and R-frame molded case circuit breakers may be specified with any of the following MicroLogic Electronic Trip Units This MicroLogic Standard 6.0A Trip Unit with field-interchangeable long-time rating plug has LSIG configuration and ammeter aditional feature. Adjustable rating plugs are offered in eight different ranges of long-time pickup adjustments. Each adjustment times the sensor rating (lr x In) of the circuit breaker sets the long-time pickup value of the circuit breaker Trip unit provides true RMS sensing, LED long-time pickup indication and thermal imaging. Also it has available test kits.Specifications
- product name
- Micrologic
- Product or Component Type
- Trip unit
- trip unit technology
- Electronic
- circuit breaker type
- P-frame;R-Frame
- provided equipment
- rating plug
- trip unit name
- Micrologic 6.0 A
- trip unit protection functions
- LSIG
- Type of Measurement
- Ammeter
- Type of Installation
- Field installable
- tightening torque
- 7.08 lbf.in (0.8 N.m)
- Height
- 7.85 in (199.39 mm)
- Width
- 2.11 in (53.59 mm)
- Depth
- 2.88 in (73.15 mm)
- Product Certifications
- CSA;UL Listed
- Category
- 01290-MASTERPACT ACCESSORIES
- Discount Schedule
- DE2F
- GTIN
- 785901979296
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.00 in (2.54 cm)
- Package 1 Width
- 1.40 in (3.556 cm)
- Package 1 Length
- 3.30 in (8.382 cm)
- Package 1 Weight
- 16.80 oz (476.272 g)
- Warranty
- 18 months
