QOU230 | QO Miniature Circuit Breaker, 30A, 2-Pole, 120V, 10kA, Plug-in Mount | Square D by Schneider Electric

Brand: Square DSKU: QOU230

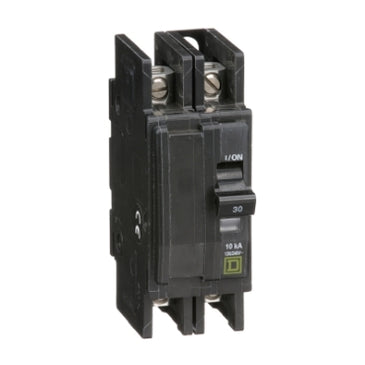

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOU230

Overview & Specifications Reviews Parts & Accessories

Overview Details for QOU230

QO Miniature Circuit Breaker, 30A, 2-Pole, 120V, 10kA, Plug-in Mount

QO Miniature Circuit Breaker

Line Rated Current: 30A
Poles Description: 2-Pole
System Voltage: 120/240V AC, 48V DC
Breaking Capacity: 10kA
Mounting Mode: Plug-in
Circuit Breaker Type: Standard
Electrical Connection: Pressure Plate

QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 30A, 240 VAC. This circuit breaker provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 1.5 inches and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.

Specifications

Product or Component Type: Miniature circuit-breaker
Range of Product: QOU
circuit breaker type: Standard
circuit breaker application: HACR rated
Line Rated Current: 30 A
electrical connection: Slotted box lugs;line side;Slotted box lugs;load side
[Ue] rated operational voltage: 120/240 V AC;120 V AC;48 V DC
Mounting Mode: Unit mount
AWG gauge: AWG 14...AWG 2 aluminium/copper
Height: 4.05 in (102.87 mm)
Width: 1.5 in (38.10 mm)
Depth: 2.95 in (74.93 mm)
tightening torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Product Certifications: IEC;CSA;UL Listed
Category: 00900-QOU BREAKERS & SWITCH
Discount Schedule: DE2
GTIN: 785901418719
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.60 in (9.144 cm)
Package 1 Width: 4.80 in (12.192 cm)
Package 1 Length: 2.10 in (5.334 cm)
Package 1 Weight: 12.16 oz (344.73 g)
Unit Type of Package 2: PAL
Number of Units in Package 2: 1008
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 785.00 lb(US) (356.07 kg)
Unit Type of Package 3: CAR
Number of Units in Package 3: 24
Package 3 Height: 3.60 in (9.144 cm)
Package 3 Width: 13.60 in (34.544 cm)
Package 3 Length: 20.80 in (52.832 cm)
Package 3 Weight: 18.95 lb(US) (8.596 kg)
Warranty: 18 months
