QOM2E2200NRB | ENCLOSED CIRCUIT BRKR 200A | Square D by Schneider Electric

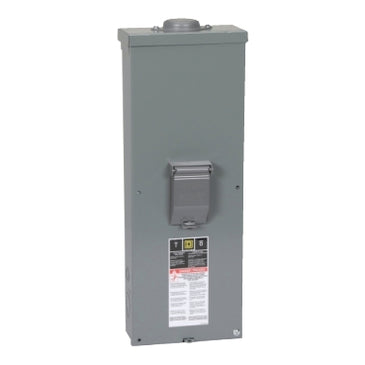

Square D | QOM2E2200NRB
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QOM2E2200NRB

Documents and manuals

Square D QOM2E2200NRB Documents

Overview

Details for QOM2E2200NRB

ENCLOSED CIRCUIT BRKR 200A

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO main breaker is rated at 200A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches.

Specifications

Product
Circuit breaker
Range
QO
Current Rating
200 A
Voltage Rating
120/240 V AC
Mounting Type
Bolt-on
Number of Poles
2P
Electrical Connection
Lugs
Frame Size
QOM2
Interrupt Rating
22 kA 120/240 V AC 50/60 Hz
Provided Equipment
enclosure
Wire Size
AWG 4...300 kcmil aluminium/copper
Tightening Torque
53.10 lbf.in (6 N.m) 0.01…0.10 in² (4…65 mm²) (AWG 12...AWG 2/0)
Height
24.57 in (624 mm)
Width
8.66 in (220 mm)
Net Weight
16.25 lb(US) (7.371 kg)
Load Center Type
Main breaker
Number of Phases
1 phase
Indoor/Outdoor Use
Outdoor
Certifications
UL Listed
Ambient Rating
104 °F (40 °C)
NEMA Enclosrue Rating
NEMA 3R
Category
00100-QOM-VH MAIN CB
Discount Schedule
DE3A
GTIN
785901375302
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
25.70 in (65.278 cm)
Package 1 Width
9.60 in (24.384 cm)
Package 1 Length
6.00 in (15.24 cm)
Package 1 Weight
16.25 lb(US) (7.371 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
42
Package 2 Height
48.00 in (121.92 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
730.00 lb(US) (331.122 kg)
Warranty
18 months
