QOB230HID | MINIATURE CIRCUIT BREAKER 240V 30A | Square D by Schneider Electric

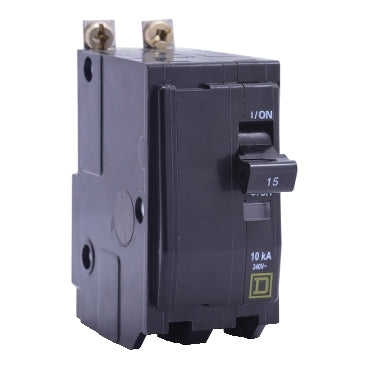

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QOB230HID
Overview
Details for QOB230HID
MINIATURE CIRCUIT BREAKER 240V 30A
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product has a high density discharge feature. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555Specifications
- Product
- Miniature circuit-breaker
- Range
- QO
- Current Rating
- 30 A
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Bolt-on
- Number of Poles
- 2P
- Circuit Breaker Type
- High intensity discharge
- Ratings
- Not rated
- Electrical Connection
- Pressure plate
- Interrupt Rating
- 10 kA 120/240 V AC 50/60 Hz
- Number of Panel Spaces
- 2
- Wire Size
- AWG 14...AWG 8 copper or aluminium
- Tightening Torque
- 40.71 lbf.in (4.6 N.m)
- Height
- 2.99 in (76 mm)
- Width
- 1.50 in (38 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 0.56 lb(US) (0.254 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 00015-QOB CIRCUIT BREAKERS
- Discount Schedule
- DE2
- GTIN
- 785901362944
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.60 in (4.064 cm)
- Package 1 Width
- 3.50 in (8.89 cm)
- Package 1 Length
- 3.50 in (8.89 cm)
- Package 1 Weight
- 8.96 oz (254.012 g)
- Warranty
- 18 months
