QOB130EPD | MINIATURE CIRCUIT BREAKER - QO, 30 A, 1P, 120 V, 10 kA, Bolt on, EPD | Square D by Schneider Electric

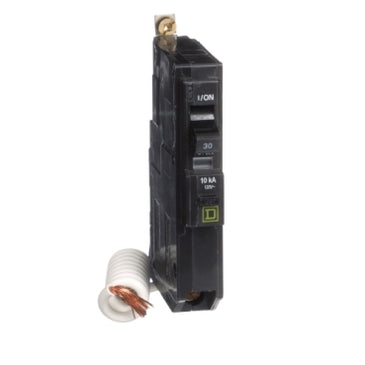

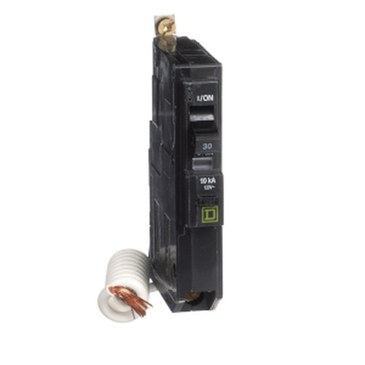

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOB130EPD

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Square D QOB130EPD Documents

Datasheet More Info

Overview

Details for QOB130EPD

MINIATURE CIRCUIT BREAKER - QO, 30 A, 1P, 120 V, 10 kA, Bolt on, EPD

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 30A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product: Miniature circuit-breaker
Range: QO
Current Rating: 30 A
Voltage Rating: 120 V AC
Mounting Type: Bolt-on
Number of Poles: 1P
Circuit Breaker Type: Ground fault protecting class B 30 mA
Ratings: Not rated
Electrical Connection: Pressure plate
Interrupt Rating: 10 kA 120 V AC 50/60 Hz
Number of Panel Spaces: 1
Wire Size: AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
Tightening Torque: 40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14);40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
Height: 4.13 in (105 mm)
Width: 0.75 in (19 mm)
Depth: 2.91 in (74 mm)
Net Weight: 0.54 lb(US) (0.245 kg)
Certifications: UL Listed;CSA
Ambient Rating: 104 °F (40 °C)
Category: 00910-QO-EPD;QOB-EPD BREAKERS
Discount Schedule: DE2A
GTIN: 785901763765
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.30 in (3.302 cm)
Package 1 Width: 3.90 in (9.906 cm)
Package 1 Length: 5.50 in (13.97 cm)
Package 1 Weight: 8.64 oz (244.94 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 38
Package 2 Height: 4.00 in (10.16 cm)
Package 2 Width: 13.40 in (34.036 cm)
Package 2 Length: 20.70 in (52.578 cm)
Package 2 Weight: 20.89 lb(US) (9.476 kg)
Warranty: 18 months
