QO350EPD | MINIATURE CIRCUIT BREAKER, QO, 50 A, 3P, 240 V, 10 kA, Plug in, EPD | Square D by Schneider Electric

Brand: Square DSKU: QO350EPD

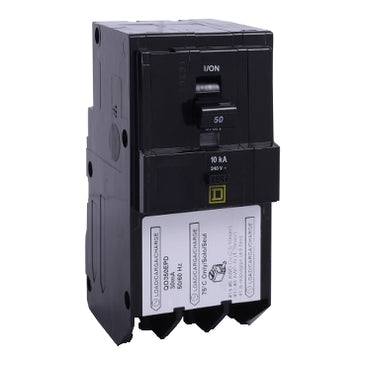

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QO350EPD

Overview & Specifications Reviews Parts & Accessories

Overview Details for QO350EPD

MINIATURE CIRCUIT BREAKER, QO, 50 A, 3P, 240 V, 10 kA, Plug in, EPD

MINIATURE CIRCUIT BREAKER

Current Rating : 50 A
Voltage Rating : 240 V AC
Number of Poles : 3P
Circuit Breaker Type : Ground fault protecting class B 30 mA
Inturrupt Rating : 10 kA 240 V AC 50/60 Hz

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 50A at 240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product: Miniature circuit-breaker
Range: QO
Current Rating: 50 A
Voltage Rating: 240 V AC
Mounting Type: Plug-in
Number of Poles: 3P
Circuit Breaker Type: Ground fault protecting class B 30 mA
Ratings: Not rated
Electrical Connection: Box lugs
Interrupt Rating: 10 kA 240 V AC 50/60 Hz
Number of Panel Spaces: 3
Wire Size: AWG 12...AWG 4 aluminium;AWG 14...AWG 6 copper
Tightening Torque: 40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14);40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
Height: 4.13 in (105 mm)
Width: 2.24 in (57 mm)
Depth: 2.91 in (74 mm)
Net Weight: 1.33 lb(US) (0.603 kg)
Certifications: UL Listed;CSA
Ambient Rating: 104 °F (40 °C)
Category: 00910-QO-EPD;QOB-EPD BREAKERS
Discount Schedule: DE2A
GTIN: 785901957126
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.60 in (6.604 cm)
Package 1 Width: 3.50 in (8.89 cm)
Package 1 Length: 6.50 in (16.51 cm)
Package 1 Weight: 21.28 oz (603.278 g)
Warranty: 18 months
