QO320GFI | MINIATURE CIRCUIT BREAKER, QO, 20 A, 3P, 208Y/120 V, 10 kA, Plug in, GFI | Square D by Schneider Electric

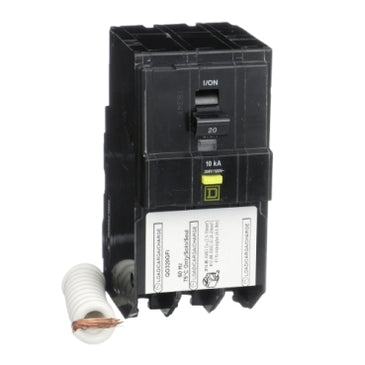

Square D | QO320GFI
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO320GFI

Documents and manuals

Square D QO320GFI Documents

Overview

Details for QO320GFI

MINIATURE CIRCUIT BREAKER, QO, 20 A, 3P, 208Y/120 V, 10 kA, Plug in, GFI

MINIATURE CIRCUIT BREAKER
  • Current Rating : 20 A
  • Voltage Rating : 208Y/120 V AC
  • Number of Poles : 3P
  • Circuit Breaker Type : Ground fault protecting class B 30 mA
  • Inturrupt Rating : 10 kA 208Y/120 V AC 50/60 Hz
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 20A at 208Y/120VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product
Miniature circuit-breaker
Range
QO
Current Rating
20 A
Voltage Rating
208Y/120 V AC
Mounting Type
Plug-in
Number of Poles
3P
Circuit Breaker Type
Ground fault protecting class A 6 mA
Ratings
Not rated
Electrical Connection
Pressure plate
Interrupt Rating
10 kA 208Y/120 V AC 50/60 Hz
Number of Panel Spaces
3
Wire Size
AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
Tightening Torque
40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14);40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
Height
4.13 in (105 mm)
Width
2.24 in (57 mm)
Depth
2.91 in (74 mm)
Net Weight
1.32 lb(US) (0.600 kg)
Certifications
UL Listed;CSA
Ambient Rating
104 °F (40 °C)
Category
00103-QO 2 POLE GFI CB 40-60A
Discount Schedule
DE2A
GTIN
785901298588
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.70 in (6.858 cm)
Package 1 Width
3.40 in (8.636 cm)
Package 1 Length
6.50 in (16.51 cm)
Package 1 Weight
1.32 lb(US) (0.6 kg)
Warranty
18 months
