QO3020 | MINIATURE CIRCUIT BREAKER 240V 30/20A | Square D by Schneider Electric

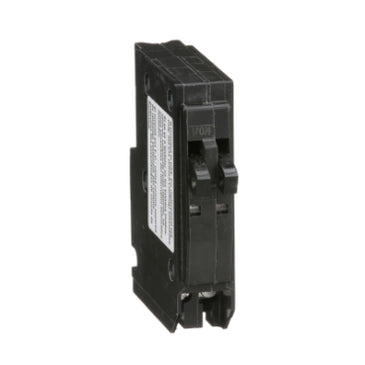

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO3020
Overview
Details for QO3020
MINIATURE CIRCUIT BREAKER 240V 30/20A
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 1 one pole at 30A and 1 one pole at 20A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 A full line of accessories are available. The box lugs will accept one 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.22 inches, a width of 0.75 inch and a depth of 2.91 inches. QO tandem circuit breakers are UL Listed and CSA certified.Specifications
- Product
- Miniature circuit-breaker
- Range
- QO
- Current Rating
- 20 A;30 A
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 1P
- Circuit Breaker Type
- Tandem
- Ratings
- HACR rated
- Electrical Connection
- Box lugs
- Interrupt Rating
- 10 kA 120/240 V AC 50/60 Hz
- Number of Panel Spaces
- 1
- Wire Size
- AWG 14...AWG 8 copper or aluminium
- Tightening Torque
- 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
- Height
- 3.23 in (82 mm)
- Width
- 0.75 in (19 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 0.34 lb(US) (0.154 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 00181-REPLCMNT TANDEMS - DO NOT NEGOTIATE
- Discount Schedule
- DE2A
- GTIN
- 785901119517
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.80 in (2.032 cm)
- Package 1 Width
- 3.60 in (9.144 cm)
- Package 1 Length
- 3.50 in (8.89 cm)
- Package 1 Weight
- 5.44 oz (154.221 g)
- Warranty
- 18 months
