QO270 | QO Miniature Circuit-Breaker, 70 A, 2 pole, 120/240 V, 10 kA, plug in | Square D by Schneider Electric

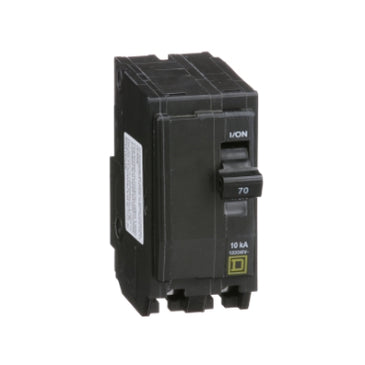

Square D | QO270
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO270

Documents and manuals

Square D QO270 Documents

Overview

Details for QO270

QO Miniature Circuit-Breaker, 70 A, 2 pole, 120/240 V, 10 kA, plug in

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 70A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product
Miniature circuit-breaker
Range
QO
Current Rating
70 A
Voltage Rating
120/240 V AC;120 V AC;48 V DC
Mounting Type
Plug-in
Number of Poles
2P
Circuit Breaker Type
Standard
Ratings
HACR rated
Electrical Connection
Box lugs
Interrupt Rating
10 kA 120/240 V AC 50/60 Hz;10 kA 120 V AC 50/60 Hz;5 kA 48 V DC
Number of Panel Spaces
2
Wire Size
AWG 8...AWG 2 copper or aluminium
Tightening Torque
44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
Height
3.11 in (79 mm)
Width
1.50 in (38 mm)
Depth
2.91 in (74 mm)
Net Weight
0.60 lb(US) (0.272 kg)
Certifications
UL Listed;CSA
Ambient Rating
104 °F (40 °C)
Category
00104-QO 35-70A 1P;70-125A 2P CB
Discount Schedule
DE2A
GTIN
785901400585
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.50 in (3.81 cm)
Package 1 Width
3.20 in (8.128 cm)
Package 1 Length
3.20 in (8.128 cm)
Package 1 Weight
9.59 oz (272.0 g)
Unit Type of Package 2
BB1
Number of Units in Package 2
5
Package 2 Height
3.30 in (8.382 cm)
Package 2 Width
2.70 in (6.858 cm)
Package 2 Length
7.70 in (19.558 cm)
Package 2 Weight
2.94 lb(US) (1.334 kg)
Unit Type of Package 3
CAR
Number of Units in Package 3
20
Package 3 Height
8.10 in (20.574 cm)
Package 3 Width
6.90 in (17.526 cm)
Package 3 Length
7.40 in (18.796 cm)
Package 3 Weight
12.20 lb(US) (5.534 kg)
Warranty
18 months
