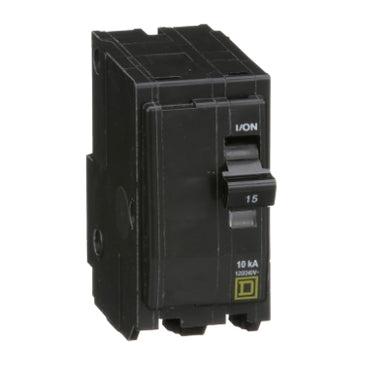

QO215CP | QO Miniature Circuit Breaker 15A 2P 120/240V 10kA Plug-in Mount | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QO215CP

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Square D QO215CP Documents

Datasheet More Info

Overview

Details for QO215CP

QO Miniature Circuit Breaker 15A 2P 120/240V 10kA Plug-in Mount

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 This product is shipped with commercial packaging.

Specifications

Product: Miniature circuit-breaker
Range: QO
Current Rating: 15 A
Voltage Rating: 120/240 V AC;120 V AC;48 V DC
Mounting Type: Plug-in
Number of Poles: 2P
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection: Pressure plate
Type of Packing: Consumer packaging
Interrupt Rating: 10 kA 120/240 V AC 50/60 Hz;10 kA 120 V AC 50/60 Hz;5 kA 48 V DC
Number of Panel Spaces: 2
Wire Size: AWG 14...AWG 8 copper or aluminium
Tightening Torque: 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
Height: 2.99 in (76 mm)
Width: 1.50 in (38 mm)
Depth: 2.91 in (74 mm)
Net Weight: 0.54 lb(US) (0.245 kg)
Certifications: UL Listed;CSA
Ambient Rating: 104 °F (40 °C)
Category: 01341-QO 2 POLE BULK BRKRS15-60A
Discount Schedule: CPQ
GTIN: 047569008948
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.50 in (3.81 cm)
Package 1 Width: 2.70 in (6.858 cm)
Package 1 Length: 3.00 in (7.62 cm)
Package 1 Weight: 8.64 oz (245.0 g)
Unit Type of Package 2: PAL
Number of Units in Package 2: 1400
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 36.00 in (91.44 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 785.96 lb(US) (356.505 kg)
Unit Type of Package 3: BB1
Number of Units in Package 3: 5
Package 3 Height: 3.30 in (8.382 cm)
Package 3 Width: 2.70 in (6.858 cm)
Package 3 Length: 7.70 in (19.558 cm)
Package 3 Weight: 2.78 lb(US) (1.261 kg)
