QO1515 | MINIATURE CIRCUIT BREAKER, QO Tandem, 15 A, 1P, 120/240 V, 10 kA, Plug in | Square D by Schneider Electric

Square D | QO1515

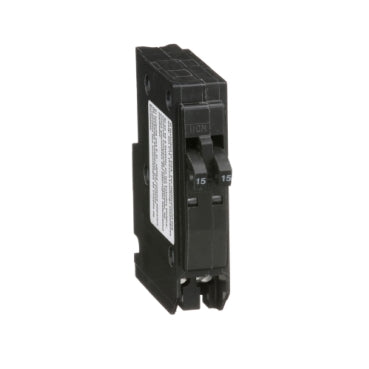

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO1515

Documents and manuals

Square D QO1515 Documents

Overview

Details for QO1515

MINIATURE CIRCUIT BREAKER, QO Tandem, 15 A, 1P, 120/240 V, 10 kA, Plug in

MINIATURE CIRCUIT BREAKER
  • Current Rating : 15 A
  • Voltage Rating : 120/240 V AC
  • Number of Poles : 1P
  • Inturrupt Rating : 10 kA 120/240 V AC 50/60 Hz
  • Circuit Breaker Type : Tandem
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 2 one pole at 15A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product
Miniature circuit-breaker
Range
QO
Current Rating
15 A
Voltage Rating
120/240 V AC
Mounting Type
Plug-in
Number of Poles
1P
Circuit Breaker Type
Tandem
Ratings
HACR rated
Electrical Connection
Box lugs
Interrupt Rating
10 kA 120/240 V AC 50/60 Hz
Number of Panel Spaces
1
Wire Size
AWG 14...AWG 8 copper or aluminium
Tightening Torque
40.71 lbf.in (4.6 N.m)
Height
3.23 in (82 mm)
Width
0.75 in (19 mm)
Depth
2.91 in (74 mm)
Net Weight
0.28 lb(US) (0.127 kg)
Certifications
UL Listed;CSA
Ambient Rating
104 °F (40 °C)
Category
00181-REPLCMNT TANDEMS - DO NOT NEGOTIATE
Discount Schedule
DE2A
GTIN
785901400905
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.79 in (7.08 cm)
Package 1 Width
0.43 in (1.08 cm)
Package 1 Length
3.16 in (8.02 cm)
Package 1 Weight
5.12 oz (145.15 g)
Unit Type of Package 2
BB1
Number of Units in Package 2
10
Package 2 Height
3.56 in (9.05 cm)
Package 2 Width
3.57 in (9.08 cm)
Package 2 Length
7.49 in (19.03 cm)
Package 2 Weight
3.37 lb(US) (1.529 kg)
Unit Type of Package 3
CAR
Number of Units in Package 3
100
Package 3 Height
7.87 in (20.0 cm)
Package 3 Width
7.87 in (20.0 cm)
Package 3 Length
19.29 in (49.0 cm)
Package 3 Weight
34.41 lb(US) (15.608 kg)
Warranty
18 months
