PJL36000S80 | TOMATIC MOLDED CASE SWITCH 600V 800A | Square D by Schneider Electric

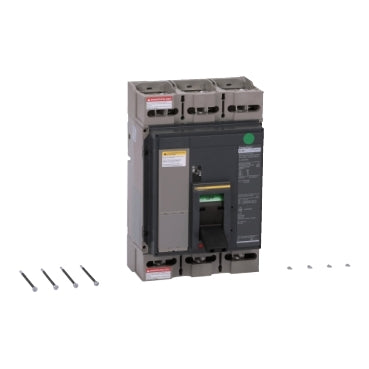

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PJL36000S80

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D PJL36000S80 Documents

Datasheet More Info

Overview

Details for PJL36000S80

TOMATIC MOLDED CASE SWITCH 600V 800A

This PowerPact P, automatic switch has a rated currrent of 800A and a rated operational current of 600VAC with a breaking capacity of 25 kA@600VAC. This unit mounted breaker is a 3-pole and has a continuous current rating of This breaker has a magnetic trip unit technology. Dimensions for this product are 12.86 in (H), 8.05 in (W), 8.27 in (D). This product comes with an 18 month warranty.

Specifications

Product or Component Type: Automatic switch
Device Application: Distribution
poles description: 3P
breaking capacity code: J
electrical connection: Lugs line;Lugs load
terminal identifier: AL800M23K
Height: 12.86 in (326.64 mm)
Width: 8.27 in (210.06 mm)
Depth: 8.05 in (204.47 mm)
tightening torque: 442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (3 x AWG 3/0...3 x 500 kcmil);8.85…11.51 lbf.in (1.0…1.3 N.m)
Category: 01215-PG;H;J;K;L;N UNIT MT BREAKERS
Discount Schedule: DE2
GTIN: 785901863717
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 12.20 in (30.988 cm)
Package 1 Width: 12.00 in (30.48 cm)
Package 1 Length: 20.50 in (52.07 cm)
Package 1 Weight: 35.00 lb(US) (15.876 kg)
Warranty: 18 months
