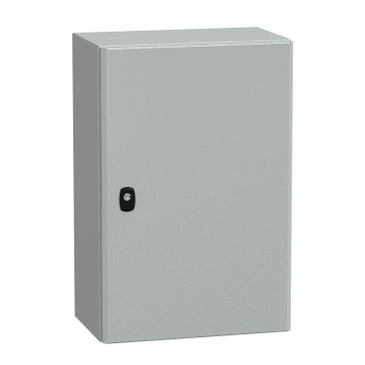

NSYS3D6425 | Spacial S3D Plain Door w/o Mounting Plate. H600xW400xD250.IP66 IK10 RAL7035 | Square D

Brand: Square DSKU: NSYS3D6425

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYS3D6425

Jump to: Overview & Specifications Reviews

Overview Details for NSYS3D6425

Spacial S3D Plain Door w/o Mounting Plate. H600xW400xD250.IP66 IK10 RAL7035

Spacial S3D wall mounted steel enclosure with plain door. 600 x 400 x 250 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK10, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.

Specifications

range: Spacial
product name: Spacial S3D
Application: Multi-purpose
Category: Compact enclosure
enclosure nominal height: 23.62 in (600 mm)
enclosure nominal width: 15.75 in (400 mm)
enclosure nominal depth: 9.84 in (250 mm)
door type: Solid
mounting plate description: Without mounting plate
type of gland plate: Standard
installation accessory type: Wall-mounting
device composition: 1 body;1 door;1 lock;1 cable gland plate
body type: Single piece body;Gutter-shaped front rail double sheet thickness
number of doors: Front face 1
door opening side: Reversible 120 °)
lock type: 3 points lock;3 mm double-bar
accessibility for operation: Front
removable parts: Door by hinges;Cable gland plate by screws
material: steel
surface finish: epoxy-polyester powder
color: Gray RAL 7035)
Standards: IEC 62208
Product Certifications: LR;BV;DNV;GL;cUL;UL
Net Weight: 25.55 lb(US) (11.59 kg)
NEMA Degree of Protection: NEMA 4X/13
IK degree of protection: IK10 IEC 62262
IP degree of protection: IP66 IEC 60529
Category: 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule: ES1
GTIN: 3606480159305
Returnability: No
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 11.61 in (29.5 cm)
Package 1 Width: 16.34 in (41.5 cm)
Package 1 Length: 24.41 in (62.0 cm)
Package 1 Weight: 25.55 lb(US) (11.59 kg)
Unit Type of Package 2: PAM
Number of Units in Package 2: 27
Package 2 Height: 78.35 in (199.0 cm)
Package 2 Width: 39.37 in (100.0 cm)
Package 2 Length: 47.24 in (120.0 cm)
Package 2 Weight: 720.91 lb(US) (327.0 kg)
Warranty: 18 months
