MPR-5610-101 | Act: Elec/Hyd, Prop, 4-20 mAdc, SR, 120 VAC, App, 15 in-lb, Linear, N1, Erie | Schneider Electric

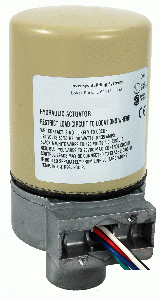

Actuator: (MPR-5610-101):

• Actuator Type: Electric/Hydraulic
• Control Signal: Proportional
• Control Signal Range: 4 to 20 mAdc
• Loss of Power Type: Spring Return
• Power Input Voltage: 120 VAC
• Leads and Connections: 4 ft Appliance
• Torque: 15 in-lb
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Product Line: Schneider Electric
• Product Range: Electronic Hydraulic
• Product Series: MPR-5600
• Actuator Use: Dampers, Globe Valves

The MPR-5600 series and MPR-5700 series actuators are used for electronic proportional control of dampers and valves which require a return to the normal position upon power interruption. MPR-5600 series actuators are compatible with controllers generating 4 to 20 mA input signals, and MPR-5700 series actuators are compatible with 135 Ω slidewire controllers (Series 90).
