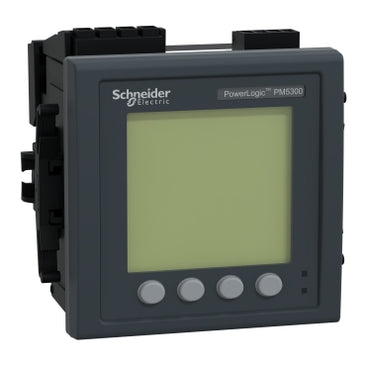

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to METSEPM5340
Overview Details for METSEPM5340
PM5340 Power meter with Ethernet - up to 31st H - 256K 2DI/2DO 35alarms - Flush Mount
This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol are Modbus TCP/IP and BACnet/IP based on 10/100 Mbit/s, Ethernet with RJ45 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).Specifications
- range
- PowerLogic
- product name
- PowerLogic PM5000
- device short name
- PM5340
- Product or Component Type
- Power meter
- power quality analysis
- up to the 31st harmonic
- Device Application
- Multi-tariff;Power monitoring
- type of measurement
- Current;Voltage;Frequency;Power factor;Energy;Active and reactive power
- supply voltage
- 90...450 V AC 45...65 Hz;100...300 V DC
- Network Frequency
- 60 Hz;50 Hz
- Line Rated Current
- 5 A;1 A
- type of network
- 3P;1P + N;3P + N
- maximum power consumption in VA
- 11.9 VA 415 V
- ride-through time
- 100 ms 120 V AC typical;400 ms 230 V AC typical;50 ms 125 V DC typical
- Display Type
- Monochrome graphic LCD
- Display Resolution
- 128 x 128 pixels
- sampling rate
- 64 samples/cycle
- measurement current
- 5…9000 mA
- analogue input type
- voltage 10 MOhm);current <= 0.3 mOhm)
- measurement voltage
- 35…760 V AC 45...65 Hz between phases;20…400 V AC 45...65 Hz between phase and neutral
- frequency measurement range
- 45…65 Hz
- number of inputs
- 2 digital
- measurement accuracy
- Active energy +/- 0.5 %;Reactive energy +/- 2 %;Active power +/- 0.5 %;Apparent power +/- 0.5 %;Frequency +/- 0.05 %;Power factor +/- 0.5;Current +/- 0.5 %;Voltage +/- 0.5 %;Apparent energy +/- 0.5 %;Reactive power +/- 2 %
- accuracy class
- Class 0.5S active energy IEC 62053-22
- Number of Outputs
- 2 relay;2 digital
- information displayed
- Tariff 4)
- communication port protocol
- Modbus TCP/IP 10/100 Mbit/s 2500 V;BACnet IP
- communication port support
- ETHERNET
- data recording
- Data logs;Alarm logs;Time stamping;Event logs;Min/max of instantaneous values;Maintenance logs
- memory capacity
- 256 kB
- connections - terminals
- Voltage circuit screw terminal block4;Control circuit screw terminal block2;Current transformer screw terminal block6;Input/output circuit screw terminal block6;Relay output screw terminal block4;Ethernet network RJ45 connector
- Mounting Mode
- Flush-mounted
- mounting support
- Framework
- Standards
- EN 50470-1;IEC 62053-24;IEC 60529;UL 61010-1;IEC 62053-22;EN 50470-3;IEC 61557-12
- product certifications
- CE IEC 61010-1;CULus UL 61010-1
- Width
- 3.78 in (96 mm)
- depth
- 2.83 in (72 mm)
- Height
- 3.78 in (96 mm)
- Net Weight
- 15.17 oz (430 g)
- electromagnetic compatibility
- Limits for harmonic current emissionsclass A IEC 61000-3-2;Electrostatic dischargelevel 4 IEC 61000-4-2;Conducted RF disturbanceslevel 3 IEC 61000-4-6;Magnetic field at power frequencylevel 4 IEC 61000-4-8;Conducted and radiated emissionsclass B EN 55022
- IP degree of protection
- Display IP51 IEC 60529;Rear IP30 IEC 60529
- relative humidity
- 5…95 % 122 °F (50 °C) non-condensing
- pollution degree
- 2
- ambient air temperature for operation
- -13…158 °F (-25…70 °C) meter;-4…158 °F (-20…70 °C) display;-13…-4 °F (-25…-20 °C) with reduced performance) display
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- operating altitude
- <= 9842.52 ft (3000 m)
- Category
- 09777-POWERLOGIC PM5000 HARDWARE
- Discount Schedule
- PL1
- GTIN
- 3606480624520
- Returnability
- Yes
- Country of origin
- IN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.72 in (12.0 cm)
- Package 1 Width
- 4.88 in (12.4 cm)
- Package 1 Length
- 4.21 in (10.7 cm)
- Package 1 Weight
- 19.40 oz (550.0 g)
