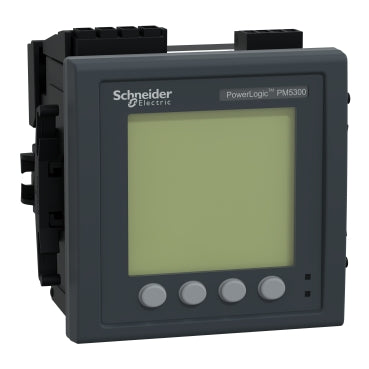

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to METSEPM5330
Overview Details for METSEPM5330
Power Meter with Modbus, Flush Mount
This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).Specifications
- range
- PowerLogic
- product name
- PowerLogic PM5000
- device short name
- PM5330
- Product or Component Type
- Power meter
- power quality analysis
- up to the 31st harmonic
- Device Application
- Power monitoring;Multi-tariff
- type of measurement
- Current;Voltage;Frequency;Power factor;Energy;Active and reactive power
- supply voltage
- 90...450 V AC 45...65 Hz;100...300 V DC
- Network Frequency
- 50 Hz;60 Hz
- Line Rated Current
- 1 A;5 A
- type of network
- 3P + N;3P;1P + N
- maximum power consumption in VA
- 11 VA 415 V
- ride-through time
- 80 ms 120 V AC typical;100 ms 230 V AC typical;100 ms 415 V AC typical;50 ms 125 V DC typical
- Display Type
- Monochrome graphic LCD
- Display Resolution
- 128 x 128 pixels
- sampling rate
- 64 samples/cycle
- measurement current
- 5…8500 mA
- analogue input type
- voltage 5 MOhm);current <= 0.3 mOhm)
- measurement voltage
- 35…760 V AC 45...65 Hz between phases;20…400 V AC 45...65 Hz between phase and neutral
- frequency measurement range
- 45…65 Hz
- number of inputs
- 2 digital
- measurement accuracy
- Active energy +/- 0.5 %;Reactive energy +/- 2 %;Active power +/- 0.5 %;Apparent power +/- 0.5 %;Frequency +/- 0.05 %;Power factor +/- 0.5;Current +/- 0.5 %;Voltage +/- 0.5 %;Apparent energy +/- 0.5 %;Reactive power +/- 2 %
- accuracy class
- Class 0.5S active energy IEC 62053-22
- Number of Outputs
- 2 relay;2 digital
- information displayed
- Tariff 4)
- communication port protocol
- Modbus RTU and ASCII 9.6;19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V;JBUS
- communication port support
- RS485
- data recording
- Maintenance logs;Time stamping;Alarm logs;Data logs;Min/max of instantaneous values;Event logs
- memory capacity
- 256 kB
- connections - terminals
- Voltage circuit screw terminal block4;Control circuit screw terminal block2;Current transformer screw terminal block6;Input/output circuit screw terminal block6;Relay output screw terminal block4;Ethernet network RJ45 connector
- Mounting Mode
- Flush-mounted
- mounting support
- Framework
- Standards
- UL 61010-1;IEC 62053-22;IEC 61557-12;EN 50470-3;IEC 60529;IEC 62053-24;EN 50470-1
- product certifications
- CE IEC 61010-1;CULus UL 61010-1
- Width
- 3.78 in (96 mm)
- depth
- 2.83 in (72 mm)
- Height
- 3.78 in (96 mm)
- Net Weight
- 15.17 oz (430 g)
- electromagnetic compatibility
- Conducted and radiated emissionsclass B EN 55022;Immunity to conducted disturbances 150 kHz...80 MHzlevel 4 IEC 61000-4-6;Electrical fast transient/burst immunity testlevel 3 IEC 61000-4-4;Radiated radio-frequency electromagnetic field immunity testlevel 4 IEC 61000-4-3;Voltage dips and interruptions immunity testclass B IEC 61000-4-11;Limits for harmonic current emissionsclass A IEC 61000-3-2;Electrostatic dischargelevel 4 IEC 61000-4-2;Conducted RF disturbanceslevel 3 IEC 61000-4-6;Magnetic field at power frequencylevel 4 IEC 61000-4-8;Immunity to conducted disturbances 150 kHz...80 MHz IEC 61000-4-6;Electrical fast transient/burst immunity test IEC 61000-4-4;Radiated radio-frequency electromagnetic field immunity test IEC 61000-4-3;Voltage dips and interruptions immunity test IEC 61000-4-11;Limitation of voltage changes;voltage fluctuations and flicker in low-voltage IEC 61000-3-3;Electrostatic discharge 8 kVlevel 4 IEC 61000-4-2
- IP degree of protection
- Display IP54 IEC 60529;Rear IP30 IEC 60529
- relative humidity
- 5…95 % 122 °F (50 °C) non-condensing
- pollution degree
- 2
- ambient air temperature for operation
- -13…158 °F (-25…70 °C) meter
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- operating altitude
- 6561.68 ft (2000 m) CAT III;9842.52 ft (3000 m) CAT II
- Category
- 09777-POWERLOGIC PM5000 HARDWARE
- Discount Schedule
- PL1
- GTIN
- 3606480614026
- Returnability
- Yes
- Country of origin
- IN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.33 in (11.0 cm)
- Package 1 Width
- 4.96 in (12.6 cm)
- Package 1 Length
- 4.96 in (12.6 cm)
- Package 1 Weight
- 19.40 oz (550.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 12
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 16.76 lb(US) (7.6 kg)
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 288
- Package 3 Height
- 41.34 in (105.0 cm)
- Package 3 Width
- 31.50 in (80.0 cm)
- Package 3 Length
- 47.24 in (120.0 cm)
- Package 3 Weight
- 455.03 lb(US) (206.4 kg)
