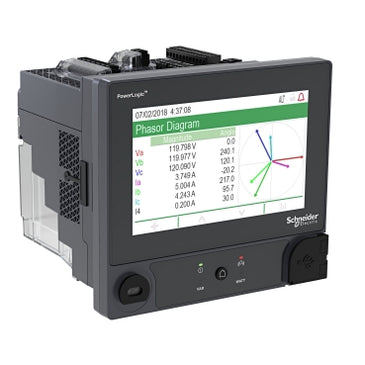

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to METSEION92040
Overview Details for METSEION92040
POWERLOGIC ION9200 METER, DIN MOUNT, NO DISPLAY, HW KIT
PowerLogic ION9200 meter- Supply voltage : 90...480 V AC 45...66 Hz +/- 10 %, 90...120 V AC 400 Hz +/- 10 %, 110...480 V DC +/- 15 %
- Network frequency : 50 Hz/60 Hz
- Ride-through time : 100 ms 6 cycles at 60 Hz 120 V AC typical, 400 ms 24 cycles at 60 Hz 240 V AC typical,1200 ms 72 cycles at 60 Hz 480 V AC typical
- Rated current : 1 A, 20 A, 5 A
- Type of network : 3P + N + E
- Power consumption in VA : 38 VA at 480 V AC, <= 80 VA at 480 V
- Display type : Without display
- Sampling rate : 1024 samples/cycle
- Measurement current : 0.01...20 A
Specifications
- range
- PowerLogic
- device short name
- ION92040
- Product or Component Type
- Energy and power quality meter
- Device Application
- Power monitoring;WAGES metering;Net metering;Medium voltage;High voltage
- metering type
- Demand current I1;I2;I3;I4;I5;Peak demand currents;Demand power P;Q;S;Peak demand power PM;QM;SM;Calculated active and reactive energy (+/- W.h;+/- VAR.h)
- Provided Equipment
- Remote display;Remote display adapter;Mounting instructions;Mounting Hardware
- power quality analysis
- EN 50160 compliance checking;IEEE 519 harmonic limit;IEC 61000-4-30 class A compliance reporting;IEEE 519 compliance reporting;waveform capture;total demand distortion;total harmonic distortion;up to the 63rd harmonic;up to the 127th harmonic with software;disturbance direction detection;dip;swell and transient;half cycle data acquisition;transient detection (20 µs)
- type of measurement
- Voltage sags and swells;Current sags and swells;Voltage;Current;Frequency;Active and reactive power total;Apparent power total;Active and reactive power per phase;Apparent power per phase;Power factor total;Power factor per phase;Active and reactive energy;Apparent energy;Harmonic distorsion (I THD & U THD)
- [Us] rated supply voltage
- 90...480 V AC 45...66 Hz +/- 10 %;90...120 V AC 400 Hz +/- 10 %;110...480 V DC +/- 15 %
- Network Frequency
- 50 Hz;60 Hz
- ride-through time
- 100 ms 6 cycles at 60 Hz 120 V AC typical;400 ms 24 cycles at 60 Hz 240 V AC typical;1200 ms 72 cycles at 60 Hz 480 V AC typical
- Line Rated Current
- 1 A;5 A
- type of network
- 3P + N + E
- power consumption in VA
- 38 VA 480 V AC
- maximum power consumption in VA
- 80 VA 480 V AC
- Display Resolution
- 800 x 480 pixels
- Display Type
- Remote LCD display;Colour touchscreen
- sampling rate
- 1024 samples/cycle
- measurement current
- 0.01…20 A
- input type
- voltage 5 MOhm);5 external CT 0.3 mOhm)
- measurement voltage
- 57…400 V AC 42...69 Hz between phase and neutral;100…690 V AC 42...69 Hz between phases
- frequency measurement range
- 20…450 Hz
- number of inputs
- 8 digital 30 V AC/60 V DC
- measurement accuracy
- Voltage +/- 0.1 %;Current +/- 0.1 %
- accuracy class
- Class 0.1S active energy IEC 62053-22;Class 0.1 active energy IEC 61557-12;Class 0.1 active energy ANSI C12.20;Class 0.5S reactive energy IEC 62053-24;Class 0.1 current IEC 61557-12;Class 0.1 voltage IEC 61557-12;Class 0.1 active power IEC 61557-12;Class 0.5 power factor IEC 61557-12
- Number of Outputs
- 4 digital;2 form C relay output
- communication port protocol
- Modbus RTU 2400...115200 bps - 2-wire;ION 2400...115200 bps - 2-wire;DNP3 2400...115200 bps - 2-wire;Modbus TCP 10/100 Mbit/s;ION TCP 10/100 Mbit/s;DNP3 TCP 10/100 Mbit/s;IEC 61850;Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s;DHCP;DNS;DLMS
- communication port support
- 2 RS485 removable screw terminal block
- port Ethernet
- 10/100BASE-TX 2 RJ45
- communication gateway
- Ethernet/serial
- time synchronisation protocol
- GPS;IRIG-B;NTP;SNTP;PTP
- data recording
- Time stamping;Min/max of instantaneous values;User-definable data logs;Continuous logging or snapshot;Trending/forecasting;Event logs;Alarm logs;Configuration change;Power outage;User login/logout;Data logs;GPS synchronisation;Sequence of event recording
- memory capacity
- 2 GB
- cybersecurity
- Syslog protocol support;Robust security logs;Port hardening;Enable/disable communication ports;Hardware metrology lock
- web services
- Viewing of captured waveform;Web page;Pass/fail report for IEEE 519;Pass/fail report for EN 50160;ITIC (CBEMA) curve;SEMI curve;NEMA motor derating curve;Alarm notification by e-mail;TLS 1.2;Push historical data via mail
- Ethernet service
- DHCP client;Device Profile Web Services (DPWS);Rapid Scanning Tree Protocol (RSTP);FTP/HTTP/HTTPS
- Communication Service
- Compliant reports;Power quality summary;Energy report;EcoStruxure Power Events Analysis;SMTP e-mail notification;SNMP
- tamperproof of settings
- Protected by sealable cover
- mounting support
- DIN rail meter device;Door cut-out remote display
- electrical insulation class
- Class III EN/IEC 62052-11
- isolation voltage
- III400…690 V conforming to EN 61010-1:ed. 3;III347…600 V conforming to UL 61010-1:ed. 3;III347…600 V conforming to CSA C22.2 No 61010-1:ed. 3
- Width
- 6.30 in (160 mm)
- Depth
- 5.33 in (135.3 mm)
- Height
- 6.30 in (160 mm)
- Net Weight
- 3.31 lb(US) (1.5 kg)
- electromagnetic compatibility
- EMC immunity IEC 62052-11;EMC immunity IEC 61326-1;EMC immunity IEC 61000-6-5;Electrostatic discharge immunity test IEC 61000-4-2;Immunity to radiated fields IEC 61000-4-3;Immunity to fast transients IEC 61000-4-4;Surge immunity test IEC 61000-4-5;Immunity to conducted disturbances IEC 61000-4-6;Immunity to magnetic fields at network frequency IEC 61000-4-8;Immunity to conducted disturbances 2...150 kHz CLC/TR 50579;Voltage dips and interruptions immunity test IEC 61000-4-11;Immunity to impulse waves IEC 61000-4-12;Conducted and radiated emissions EN 55011;Conducted and radiated emissionsclass B EN 55032;Conducted and radiated emissionsclass B FCC part 15;Conducted and radiated emissionsclass B ICES-003;Surge withstand ANSI C37.90.1;Surge withstand IEEE C37.90.1
- IP degree of protection
- Front IP65;Rear IP30
- degree of protection
- UL type 12;front
- relative humidity
- 5…95 %
- ambient air temperature for operation
- -13…158 °F (-25…70 °C)
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- installation category
- III
- Operating altitude
- 0...9842.52 ft (0...3000 m)
- Standards
- ANSI C12.20;ANSI C37.90.1;IEC 61000-4-15;IEC 61000-4-30;IEC 61010-1;IEC 61326-1;IEC 61557-12;IEC 61850;IEC 62052-11;IEC 62052-31;IEC 62053-22;IEC 62053-23;IEC 62053-24;IEC 62586;UL 61010-1
- quality labels
- ISO 9001;ISO 14000
- Category
- 09761-POWERLOGIC ION 9000 HARDWARE
- Discount Schedule
- PM1
- GTIN
- 3606481352316
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.81 in (30.0 cm)
- Package 1 Width
- 11.81 in (30.0 cm)
- Package 1 Length
- 16.14 in (41.0 cm)
- Package 1 Weight
- 7.94 lb(US) (3.6 kg)
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 2
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 15.75 in (40.0 cm)
- Package 2 Length
- 23.62 in (60.0 cm)
- Package 2 Weight
- 9.70 lb(US) (4.4 kg)
