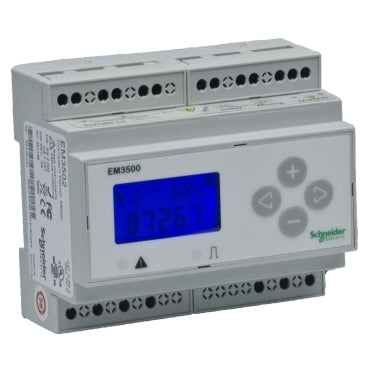

EM3500 BAC NET METER
The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xx models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, according to the LVCT configuration in the HMI, ANSI C12.20 0.2% accuracy, IEC 62053-22 class 0.2S. Modbus, pulse output, and phase alarms are all provided to suit a wide variety of applications. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm.Specifications
- range
- PowerLogic
- range of product
- PowerLogic EM3500
- device short name
- EM3550
- Product or Component Type
- Energy meter
- metering type
- Voltage U21;U32;U13;V1;V2;V3;Peak demand power PM;QM;SM;Demand power P;Q;S;Current I1;I2;I3;Iavg
- poles description
- 3P + N
- type of measurement
- Active and reactive power total;Active and reactive power per phase;Apparent power total;Apparent power per phase;Power factor total;Power factor per phase;Peak demand power;Current;Voltage;Frequency
- Device Application
- Sub billing;Partial meter
- accuracy class
- Class 0.2S power IEC 62053-22;Class 0.2S energy IEC 62053-22;Class 0.2S power ANSI C12.20;Class 0.2S energy ANSI C12.20
- measurement accuracy
- Power +/- 0.2 %;Energy +/- 0.2 %
- input type
- split core current transducer 0.333 V or 1 V
- rated voltage
- 90…347 V
- Network Frequency
- 50 Hz;60 Hz
- Technology Type
- Electronic
- Display Type
- Backlit LCD
- measurement current
- 5…32000 A
- display digits
- 5
- information displayed
- Status and alert;Communication with system;Input/output status;Error;Tx activity;Rx activity;Instant power per usage
- tamperproof of settings
- Protected by access code
- communication port protocol
- Modbus RTU 1200…38400 bps - 2-wire
- communication port support
- Screw terminal block RS485
- Communication Service
- Total cumulated energy;Total cumulated active energy
- data recording
- Energy consumption logs
- Demand intervals
- Fixed or rolling block;External synchronisation to communication
- local signalling
- Red LED threshold reached;Green flashing LED output signal
- Number of Outputs
- 1 alarm output;1 pulse
- [Ue] rated operational voltage
- 90...347 V AC 50/60 Hz between phase and neutral UL;156...600 V AC 50/60 Hz between phases UL;90...300 V AC 50/60 Hz between phase and neutral CE;125...300 V DC
- power consumption in VA
- 5 VA 347 V AC between phase and neutral);5 VA 600 V AC between phases)
- power consumption in W
- 3 W 300 V
- ride-through time
- 100 ms 120 V AC
- Mounting Mode
- Clip-on;By screws
- Mounting Support
- DIN rail
- Standards
- UL 508;IEC 61010-1;CSA C22.2 No 14-05
- product certifications
- CE IEC 61010;CULus UL 508
- relative humidity
- 0…95 %
- ambient air temperature for operation
- -22…158 °F (-30…70 °C)
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- Color
- Dark grey
- 9 mm pitches
- 12
- Width
- 4.21 in (107 mm)
- Height
- 3.58 in (91 mm)
- Depth
- 2.32 in (59 mm)
- Category
- 09798-POWERLOGIC EM3500 SERIES
- Discount Schedule
- PL1
- GTIN
- 785901302605
- Returnability
- Yes
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.58 in (9.1 cm)
- Package 1 Width
- 4.21 in (10.7 cm)
- Package 1 Length
- 2.32 in (5.9 cm)
- Package 1 Weight
- 8.00 lb(US) (3.629 kg)
