MA1IMA12 | Surge mod IMA - 120kA, 120/240VAC, 1P3W, T2, CSA | Square D by Schneider Electric

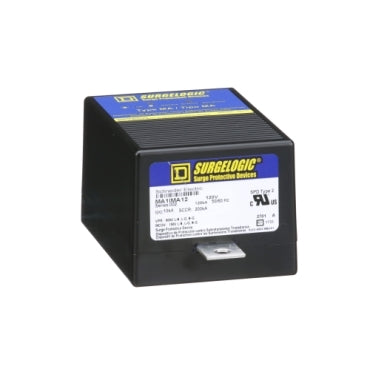

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MA1IMA12
Overview
Details for MA1IMA12
Surge mod IMA - 120kA, 120/240VAC, 1P3W, T2, CSA
Surgelogic™ EMA and EBA series SPDs, MA1IMA12, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems.Specifications
- Product
- Surge protection module
- Range
- Surgelogic
- Device Short Name
- IMA
- Accessory Category
- Replacement part
- Surge Current
- 120 kA per phase
- Voltage Rating
- 120/240 V AC
- Number of Phases
- 1 phase
- Wiring Configuration
- 3-wire
- Connection
- Terminals
- MCOV
- 150 V
- Nominal Discharge Current
- 20 kA
- SCCR
- 200 kA
- Local Signalling
- Status LED green normal operation
- Provided Equipment
- Alarm enable/disable switch
- Mounting Support
- Panel mounting
- Height
- 6.25 in (158.8 mm)
- Width
- 3.26 in (82.8 mm)
- Depth
- 2.69 in (68.3 mm)
- Enclosure Rating
- NEMA 2
- Enclosure Material
- Black Plastic
- Standards
- UL 1449:ed. 4;UL 1283:ed. 5;CSA C22.2 No 8:1986;ANSI/IEEE C62.41;ANSI/IEEE C62.45;NEC 285
- Ambient Operating
- 149 °F (65 °C)
- Category
- 08467-SURGE PROTECTION REPLACEMENT
- Discount Schedule
- DE1B
- GTIN
- 785901292913
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.80 in (14.732 cm)
- Package 1 Width
- 5.30 in (13.462 cm)
- Package 1 Length
- 8.20 in (20.828 cm)
- Package 1 Weight
- 28.80 oz (816.466 g)
- Warranty
- 18 months
