LC1D25KUE | TeSys D contactor 3P 25A AC-3 up to 440V coil 100, 250V AC/DC | Square D by Schneider Electric

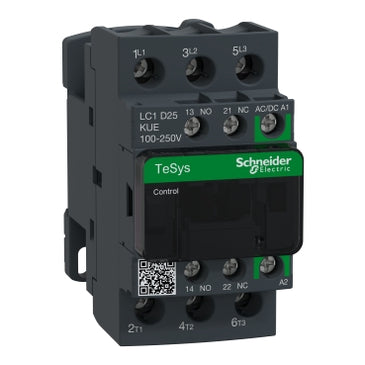

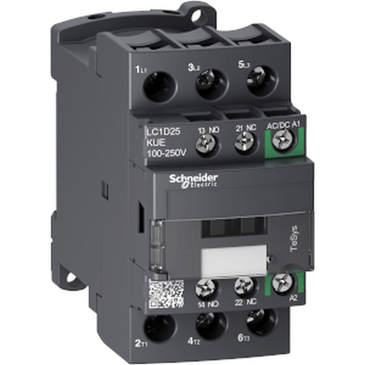

Square D | LC1D25KUE
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1D25KUE

Documents and manuals

Square D LC1D25KUE Documents

Overview

Details for LC1D25KUE

TeSys D contactor 3P 25A AC-3 up to 440V coil 100, 250V AC/DC

TeSys D Green contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 25A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 3HP at 240VAC single phase. When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Equipped with an electronic coil, wide band voltage 100-250V, AC/DC compatible, low consumption. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.95 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

range
TeSys;TeSys Deca
Range of Product
TeSys D;TeSys Deca
Product or Component Type
Contactor
device short name
LC1D
contactor application
Motor control;Resistive load
utilisation category
AC-3;AC-1;AC-3e
poles description
3P
[Ue] rated operational voltage
Power circuit <= 690 V AC 25...400 Hz
[Ie] rated operational current
25 A 140 °F (60 °C)) <= 440 V AC-3 power circuit;40 A 140 °F (60 °C)) <= 440 V AC-1 power circuit;25 A 140 °F (60 °C)) <= 440 V AC-3e power circuit
[Uc] control circuit voltage
100...250 V AC 50/60 Hz;100...250 V DC
motor power kW
5.5 kW 220...230 V AC 50 Hz AC-3);11 kW 380...400 V AC 50 Hz AC-3);11 kW 415 V AC 50 Hz AC-3);11 kW 440 V AC 50 Hz AC-3);15 kW 500 V AC 50 Hz AC-3);15 kW 660...690 V AC 50 Hz AC-3);5.5 kW 220...230 V AC 50 Hz AC-3e);11 kW 380...400 V AC 50 Hz AC-3e);11 kW 415 V AC 50 Hz AC-3e);11 kW 440 V AC 50 Hz AC-3e);15 kW 500 V AC 50 Hz AC-3e);15 kW 660...690 V AC 50 Hz AC-3e)
Maximum Horse Power Rating
2 hp 115 V at AC 60 Hz for 1 phase;3 hp 230/240 V at AC 60 Hz for 1 phase;7.5 hp 200/208 V at AC 60 Hz for 3 phase;7.5 hp 230/240 V at AC 60 Hz for 3 phase;15 hp 460/480 V at AC 60 Hz for 3 phase;20 hp 575/600 V at AC 60 Hz for 3 phase
compatibility code
LC1D
pole contact composition
3 NO
protective cover
With
[Ith] conventional free air thermal current
10 A 140 °F (60 °C) signalling circuit;40 A 140 °F (60 °C) power circuit
Irms rated making capacity
140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;450 A 440 V power circuit IEC 60947
rated breaking capacity
450 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current
100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit;50 A 104 °F (40 °C) - 10 min power circuit;120 A 104 °F (40 °C) - 1 min power circuit;240 A 104 °F (40 °C) - 10 s power circuit;380 A 104 °F (40 °C) - 1 s power circuit
associated fuse rating
10 A gG signalling circuit IEC 60947-5-1;63 A gG <= 690 V type 1 power circuit;40 A gG <= 690 V type 2 power circuit
average impedance
2 mOhm - Ith 40 A 50 Hz power circuit
power dissipation per pole
3.2 W AC-1;1.25 W AC-3;1.25 W AC-3e
[Ui] rated insulation voltage
Power circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-1
overvoltage category
III
pollution degree
3
[Uimp] rated impulse withstand voltage
6 kV IEC 60947
safety reliability level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability
15 Mcycles
electrical durability
2 Mcycles 21 A AC-3 <= 440 V;0.9 Mcycles 40 A AC-1 <= 440 V;2 Mcycles 21 A AC-3e <= 440 V
control circuit type
AC/DC 50/60 Hz AC/DC electronic
coil technology
Built-in bidirectional peak limiting
control circuit voltage limits
<= 0.1 Uc -40…158 °F (-40…70 °C) drop-out AC/DC;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC/DC;1...1.1 Uc 140…158 °F (60…70 °C) operational AC/DC
inrush power in VA
25 VA 50/60 Hz 68 °F (20 °C))
inrush power in W
18 W 68 °F (20 °C))
hold-in power consumption in VA
1.6 VA 50/60 Hz 68 °F (20 °C))
hold-in power consumption in W
1.1 W 68 °F (20 °C)
heat dissipation
1.1 W 50/60 Hz
operating time
45...55 ms closing;20...90 ms opening
maximum operating rate
3600 cyc/h 140 °F (60 °C)
connections - terminals
Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid;Power circuit screw clamp terminals 1 0.00…0.02 in² (2.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 2 0.00…0.02 in² (2.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1…10 mm²) flexible with cable end;Power circuit screw clamp terminals 2 0.00…0.01 in² (1.5…6 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) solid;Power circuit screw clamp terminals 2 0.00…0.02 in² (2.5…10 mm²) solid
tightening torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals flat Ø 6 mm;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals Philips No 2;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2 M4;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2 M3.5
auxiliary contact composition
1 NO + 1 NC
auxiliary contacts type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
signalling circuit frequency
25...400 Hz
minimum switching voltage
17 V signalling circuit
minimum switching current
5 mA signalling circuit
insulation resistance
> 10 MOhm signalling circuit
non-overlap time
1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
Mounting Support
Plate;Rail
standards
EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;CSA C22.2 No 60947-4-1;IEC 60335-1
Product Certifications
CCC;CSA;EAC;UL;KC;DNV-GL;LROS (Lloyds register of shipping);UKCA
IP degree of protection
IP20 front face IEC 60529
climatic withstand
IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat
permissible ambient air temperature around the device
-40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
operating altitude
0...9842.52 ft (0...3000 m)
fire resistance
1562 °F (850 °C) IEC 60695-2-1
flame retardance
V1 conforming to UL 94
mechanical robustness
Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor closed 15 Gn for 11 ms);Shocks contactor open 8 Gn for 11 ms)
Height
3.35 in (85 mm)
Width
1.77 in (45 mm)
Depth
3.62 in (92 mm)
Net Weight
0.95 lb(US) (0.433 kg)
Category
22356-CTR;TESYS D;OPEN;9-65A AC/DC GREEN
Discount Schedule
I12
GTIN
3606480987748
Returnability
Yes
Country of origin
FR
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.17 in (5.5 cm)
Package 1 Width
3.74 in (9.5 cm)
Package 1 Length
4.65 in (11.8 cm)
Package 1 Weight
16.05 oz (455.0 g)
Unit Type of Package 2
S02
Number of Units in Package 2
15
Package 2 Height
5.91 in (15.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
15.74 lb(US) (7.138 kg)
Warranty
18 months
