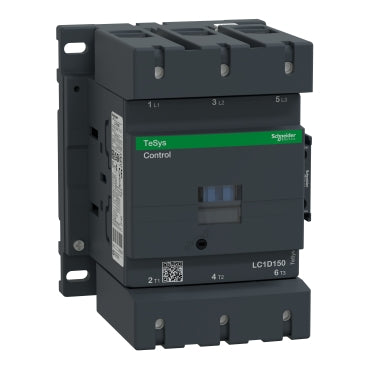

TeSys D Contactor, 3-Poles (3 NO), 150A, 240V AC Coil, Non-Reversing
TeSys D ContactorSpecifications
- range
- TeSys
- Range of Product
- TeSys D
- Product or Component Type
- Contactor
- device short name
- LC1D
- contactor application
- Resistive load;Motor control
- utilisation category
- AC-3;AC-4;AC-1;AC-3e
- poles description
- 3P
- [Ue] rated operational voltage
- Power circuit <= 1000 V AC 25...400 Hz;Power circuit <= 300 V DC
- [Ie] rated operational current
- 200 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;150 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;150 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit
- [Uc] control circuit voltage
- 240 V AC 50/60 Hz
- motor power kW
- 40 kW 220...230 V AC 50/60 Hz AC-3);75 kW 380...400 V AC 50/60 Hz AC-3);80 kW 415...440 V AC 50/60 Hz AC-3);90 kW 500 V AC 50/60 Hz AC-3);100 kW 660...690 V AC 50/60 Hz AC-3);75 kW 1000 V AC 50/60 Hz AC-3);22 kW 400 V AC 50/60 Hz AC-4);40 kW 220...230 V AC 50/60 Hz AC-3e);75 kW 380...400 V AC 50/60 Hz AC-3e);80 kW 415...440 V AC 50/60 Hz AC-3e);90 kW 500 V AC 50/60 Hz AC-3e);100 kW 660...690 V AC 50/60 Hz AC-3e);75 kW 1000 V AC 50/60 Hz AC-3e)
- Maximum Horse Power Rating
- 40 hp 200/208 V at AC 50/60 Hz for 3 phase;50 hp 230/240 V at AC 50/60 Hz for 3 phase;100 hp 460/480 V at AC 50/60 Hz for 3 phase;125 hp 575/600 V at AC 50/60 Hz for 3 phase
- compatibility code
- LC1D
- pole contact composition
- 3 NO
- contact compatibility
- M13
- protective cover
- With
- [Ith] conventional free air thermal current
- 200 A 140 °F (60 °C) power circuit
- Irms rated making capacity
- 140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;1660 A 440 V power circuit IEC 60947
- rated breaking capacity
- 1400 A 440 V power circuit IEC 60947
- [Icw] rated short-time withstand current
- 250 A 104 °F (40 °C) - 10 min power circuit;580 A 104 °F (40 °C) - 1 min power circuit;1200 A 104 °F (40 °C) - 10 s power circuit;1400 A 104 °F (40 °C) - 1 s power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
- associated fuse rating
- 10 A gG signalling circuit IEC 60947-5-1;315 A gG <= 690 V type 1 power circuit;250 A gG <= 690 V type 2 power circuit
- average impedance
- 0.6 mOhm - Ith 200 A 50 Hz power circuit
- power dissipation per pole
- 24 W AC-1;13.5 W AC-3;13.5 W AC-3e
- [Ui] rated insulation voltage
- Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 1000 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL
- overvoltage category
- III
- pollution degree
- 3
- [Uimp] rated impulse withstand voltage
- 8 kV IEC 60947
- safety reliability level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- mechanical durability
- 8 Mcycles
- electrical durability
- 0.85 Mcycles 150 A AC-3 <= 440 V;1 Mcycles 200 A AC-1 <= 440 V;0.85 Mcycles 150 A AC-3e <= 440 V
- control circuit type
- AC 50/60 Hz
- coil technology
- Built-in bidirectional peak limiting diode suppressor
- control circuit voltage limits
- 0.3...0.5 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.15 Uc -40…131 °F (-40…55 °C) operational AC 50/60 Hz;1...1.15 Uc 131…158 °F (55…70 °C) operational AC 50/60 Hz
- inrush power in VA
- 280…350 VA 60 Hz 0.9 68 °F (20 °C));280…350 VA 50 Hz 0.9 68 °F (20 °C))
- hold-in power consumption in VA
- 2…18 VA 60 Hz 0.9 68 °F (20 °C));2…18 VA 50 Hz 0.9 68 °F (20 °C))
- heat dissipation
- 3…4.5 W 50/60 Hz
- operating time
- 20...35 ms closing;40...75 ms opening
- maximum operating rate
- 1200 cyc/h 140 °F (60 °C)
- connections - terminals
- Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) flexible without cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) flexible without cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) flexible with cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) flexible with cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) solid without cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) solid without cable end
- tightening torque
- Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;Power circuit 106.21 lbf.in (12 N.m) connector hexagonal 0.16 in (4 mm);Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
- auxiliary contact composition
- 1 NO + 1 NC
- auxiliary contacts type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
- signalling circuit frequency
- 25...400 Hz
- minimum switching voltage
- 17 V signalling circuit
- minimum switching current
- 5 mA signalling circuit
- insulation resistance
- > 10 MOhm signalling circuit
- non-overlap time
- 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
- Mounting Support
- Plate;Rail
- standards
- CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508
- Product Certifications
- DNV;GOST;RINA;BV;GL;UL;CCC;LROS (Lloyds register of shipping);CSA;UKCA;CE
- IP degree of protection
- IP20 front face IEC 60529
- protective treatment
- THIEC 60068-2-30
- climatic withstand
- IACS E10 exposure to damp heat
- permissible ambient air temperature around the device
- -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
- operating altitude
- 0...9842.52 ft (0...3000 m)
- fire resistance
- 1562 °F (850 °C) IEC 60695-2-1
- flame retardance
- V1 conforming to UL 94
- mechanical robustness
- Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor closed 15 Gn for 11 ms);Shocks contactor open 6 Gn for 11 ms)
- Height
- 6.22 in (158 mm)
- Width
- 4.72 in (120 mm)
- Depth
- 5.35 in (136 mm)
- Net Weight
- 5.51 lb(US) (2.5 kg)
- Category
- 22359-CTR;TESYS D;OPEN;80-150A AC&DC
- Discount Schedule
- I12
- GTIN
- 3389110479300
- Returnability
- Yes
- Country of origin
- CZ
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.48 in (19.0 cm)
- Package 1 Width
- 6.89 in (17.5 cm)
- Package 1 Length
- 8.39 in (21.3 cm)
- Package 1 Weight
- 5.47 lb(US) (2.48 kg)
- Unit Type of Package 2
- S06
- Number of Units in Package 2
- 27
- Package 2 Height
- 28.94 in (73.5 cm)
- Package 2 Width
- 31.50 in (80.0 cm)
- Package 2 Length
- 23.62 in (60.0 cm)
- Package 2 Weight
- 178.72 lb(US) (81.067 kg)
- Warranty
- 18 months
