LC1D115T7 | TeSys D Contactor, 3-Poles (3 NO), 115A, 480V AC Coil, Non-Reversing | Square D by Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: LC1D115T7

Web Price:

$497.81
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

LC1D115T7 | TeSys D Contactor, 3-Poles (3 NO), 115A, 480V AC Coil, Non-Reversing | Square D by Schneider Electric

Square D | LC1D115T7

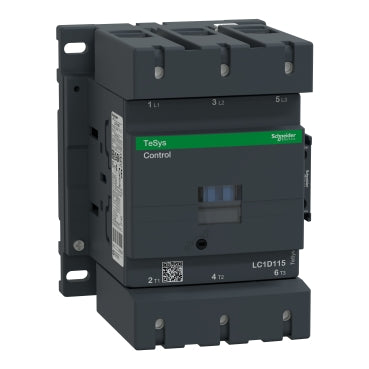

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1D115T7

Documents and manuals

Square D LC1D115T7 Documents

Overview

Details for LC1D115T7

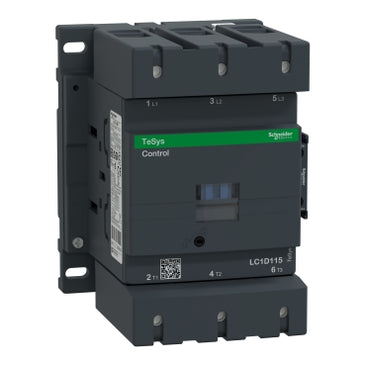

TeSys D Contactor, 3-Poles (3 NO), 115A, 480V AC Coil, Non-Reversing

TeSys D Contactor
  • Number of Poles: 3-Poles
  • Pole Contact Composition: 3 NO
  • Rated Operational Current: 115A
  • Control Circuit Voltage: 480V AC 50/60 Hz
  • Non-Reversing TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 115A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 30HP at 200 to 208VAC, 40HP at 240VAC, 75HP at 480VAC and 100HP at 600VAC three phase. When used with a 480VAC up to 250A circuit breaker, this contactor can have a SCCR up to 100kA. When used with a 600VAC up to 250A circuit breaker, this contactor can have a SCCR up to 50kA. When used with 600VAC Class J or CC fuses up to 250A, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 480 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 4.72 inches wide and 5.35 inches deep. It weighs 5.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
  • Specifications

    range
    TeSys
    Range of Product
    TeSys D
    Product or Component Type
    Contactor
    device short name
    LC1D
    contactor application
    Resistive load;Motor control
    utilisation category
    AC-3;AC-1;AC-4;AC-3e
    poles description
    3P
    [Ue] rated operational voltage
    Power circuit <= 1000 V AC 25...400 Hz;Power circuit <= 300 V DC
    [Ie] rated operational current
    200 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;115 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;115 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit
    [Uc] control circuit voltage
    480 V AC 50/60 Hz
    motor power kW
    30 kW 220...230 V AC 50/60 Hz AC-3);55 kW 380...400 V AC 50/60 Hz AC-3);59 kW 415...440 V AC 50/60 Hz AC-3);75 kW 500 V AC 50/60 Hz AC-3);80 kW 660...690 V AC 50/60 Hz AC-3);65 kW 1000 V AC 50/60 Hz AC-3);18.5 kW 400 V AC 50/60 Hz AC-4);30 kW 220...230 V AC 50/60 Hz AC-3e);55 kW 380...400 V AC 50/60 Hz AC-3e);59 kW 415...440 V AC 50/60 Hz AC-3e);75 kW 500 V AC 50/60 Hz AC-3e);80 kW 660...690 V AC 50/60 Hz AC-3e);65 kW 1000 V AC 50/60 Hz AC-3e)
    Maximum Horse Power Rating
    30 hp 200/208 V at AC 50/60 Hz for 3 phase;40 hp 230/240 V at AC 50/60 Hz for 3 phase;75 hp 460/480 V at AC 50/60 Hz for 3 phase;100 hp 575/600 V at AC 50/60 Hz for 3 phase
    compatibility code
    LC1D
    pole contact composition
    3 NO
    contact compatibility
    M13
    protective cover
    With
    [Ith] conventional free air thermal current
    200 A 140 °F (60 °C) power circuit
    Irms rated making capacity
    1260 A 440 V power circuit IEC 60947;140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1
    rated breaking capacity
    1100 A 440 V power circuit IEC 60947
    [Icw] rated short-time withstand current
    250 A 104 °F (40 °C) - 10 min power circuit;550 A 104 °F (40 °C) - 1 min power circuit;950 A 104 °F (40 °C) - 10 s power circuit;1100 A 104 °F (40 °C) - 1 s power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
    associated fuse rating
    250 A gG <= 690 V type 1 power circuit;200 A gG <= 690 V type 2 power circuit;10 A gG signalling circuit
    average impedance
    0.6 mOhm - Ith 200 A 50 Hz power circuit
    power dissipation per pole
    24 W AC-1;7.9 W AC-3;7.9 W AC-3e
    [Ui] rated insulation voltage
    Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 1000 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL
    overvoltage category
    III
    pollution degree
    3
    [Uimp] rated impulse withstand voltage
    8 kV IEC 60947
    safety reliability level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
    mechanical durability
    8 Mcycles
    electrical durability
    0.8 Mcycles 200 A AC-1 <= 440 V;0.95 Mcycles 115 A AC-3 <= 440 V;0.95 Mcycles 115 A AC-3e <= 440 V
    control circuit type
    AC 50/60 Hz
    coil technology
    Built-in bidirectional peak limiting diode suppressor
    control circuit voltage limits
    0.3...0.5 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.15 Uc -40…131 °F (-40…55 °C) operational AC 50/60 Hz;1...1.15 Uc 131…158 °F (55…70 °C) operational AC 50/60 Hz
    inrush power in VA
    280…350 VA 60 Hz 0.8 68 °F (20 °C));280…350 VA 50 Hz 0.8 68 °F (20 °C))
    hold-in power consumption in VA
    2…18 VA 60 Hz 0.3 68 °F (20 °C));2…18 VA 50 Hz 0.3 68 °F (20 °C))
    maximum operating rate
    2400 cyc/h 140 °F (60 °C)
    tightening torque
    Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;Power circuit 106.21 lbf.in (12 N.m) connector hexagonal 0.16 in (4 mm);Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
    auxiliary contact composition
    1 NO + 1 NC
    auxiliary contacts type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
    signalling circuit frequency
    25...400 Hz
    minimum switching voltage
    17 V signalling circuit
    minimum switching current
    5 mA signalling circuit
    insulation resistance
    > 10 MOhm signalling circuit
    non-overlap time
    1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
    Mounting Support
    Rail;Plate
    standards
    CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508
    Product Certifications
    BV;GL;LROS (Lloyds register of shipping);CCC;GOST;RINA;DNV;UL;CSA;UKCA;CE
    IP degree of protection
    IP20 front face IEC 60529
    climatic withstand
    IACS E10
    operating altitude
    0...9842.52 ft (0...3000 m)
    fire resistance
    1562 °F (850 °C) IEC 60695-2-1
    flame retardance
    V1 conforming to UL 94
    Height
    6.22 in (158 mm)
    Width
    4.72 in (120 mm)
    Depth
    5.35 in (136 mm)
    Net Weight
    5.51 lb(US) (2.5 kg)
    Category
    22359-CTR;TESYS D;OPEN;80-150A AC&DC
    Discount Schedule
    I12
    GTIN
    3389110377729
    Returnability
    Yes
    Country of origin
    CZ
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Height
    6.61 in (16.8 cm)
    Package 1 Width
    8.19 in (20.8 cm)
    Package 1 Length
    7.28 in (18.5 cm)
    Package 1 Weight
    5.42 lb(US) (2.458 kg)
    Unit Type of Package 2
    S06
    Number of Units in Package 2
    27
    Package 2 Height
    28.94 in (73.5 cm)
    Package 2 Width
    23.62 in (60.0 cm)
    Package 2 Length
    31.50 in (80.0 cm)
    Package 2 Weight
    174.97 lb(US) (79.366 kg)
    Warranty
    18 months
