LAL36350 | MOLDED CASE CIRCUIT BREAKER 600V 350A | Square D by Schneider Electric

Brand: Square DSKU: LAL36350

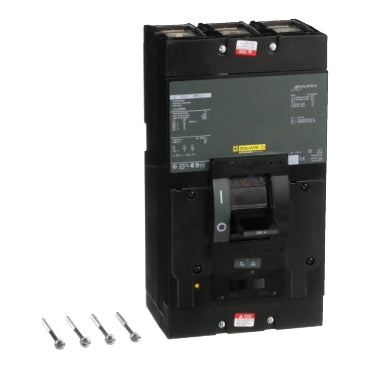

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LAL36350

Jump to: Overview & Specifications Reviews

Overview Details for LAL36350

MOLDED CASE CIRCUIT BREAKER 600V 350A

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 350A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified. .

Specifications

Product or Component Type: Circuit breaker
Trip Unit Technology: Thermal-magnetic
Line Rated Current: 350 A
Number of Poles: 3P
Mounting Mode: Unit mount
Magnetic Hold Current: 1750 A
Magnetic Tripping Current: 3500 A
electrical connection: Lugs load;Lugs line
terminal identifier: AL400LA
tightening torque: 115.06 lbf.in (13 N.m) 0.07…0.47 in² (42…304 mm²) (AWG 1...600 kcmil);115.06 lbf.in (13 N.m) 0.07…0.20 in² (42…127 mm²) (AWG 1...250 kcmil)
Height: 11 in (279.40 mm)
Width: 6 in (152.40 mm)
Depth: 5.84 in (148.34 mm)
circuit breaker application: HACR rated
Certifications: UL Listed;IEC;CSA
Category: 00935-LAL/LHL BRKR;SW;MAG-GARD
Discount Schedule: DE2
GTIN: 785901426820
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 9.30 in (23.622 cm)
Package 1 Width: 11.60 in (29.464 cm)
Package 1 Length: 17.40 in (44.196 cm)
Package 1 Weight: 16.20 lb(US) (7.348 kg)
Warranty: 18 months
