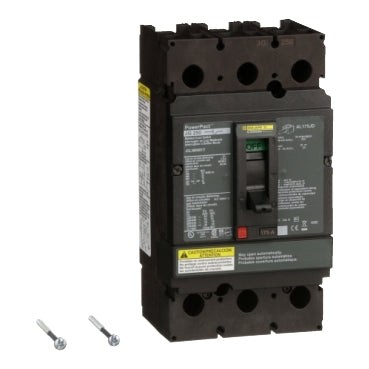

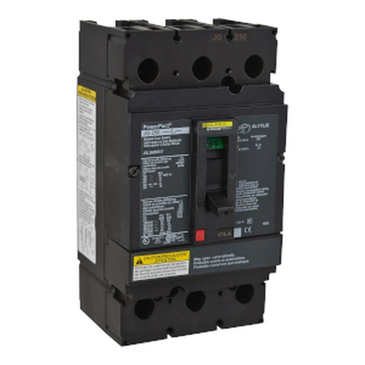

JGL36000S17 | POWERPACT AUTOMATIC MOULDED CASE SWITCH 600V 175 A J-Frame | Square D by Schneider Electric

Brand: Square DSKU: JGL36000S17

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to JGL36000S17

Jump to: Overview & Specifications Reviews

Overview Details for JGL36000S17

POWERPACT AUTOMATIC MOULDED CASE SWITCH 600V 175 A J-Frame

PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction to, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT J-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT J, 175A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT J automatic switches comply to UL, CSA, NMX, and IEC standards and are CE marked.

Specifications

Product or Component Type: Automatic switch
Range of Product: PowerPact J
trip unit technology: Magnetic
circuit breaker type: J-frame
Line Rated Current: 175 A
[Ue] rated operational voltage: 600 V AC
Mounting Mode: Unit mount
poles description: 3P
short-circuit withstand: 65 kA 240 V UL 489;35 kA 480 V UL 489;18 kA 600 V UL 489
breaking capacity code: G
electrical connection: Lugs line;Lugs load
AWG gauge: AWG 4...AWG 4/0 aluminium/copper)
terminal identifier: AL175JD
magnetic tripping current: 3125 A
Height: 7.52 in (191.01 mm)
Width: 2.74 in (69.60 mm)
Depth: 5 in (127.00 mm)
tightening torque: 230.12 lbf.in (26 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 4...AWG 4/0)
Product Certifications: CSA;UL Listed;IEC
Category: 01115-HG;HJ;JG;JJ UNIT MT BREAKER/SWITCH
Discount Schedule: DE2
GTIN: 785901602330
Returnability: No
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.13 in (13.018 cm)
Package 1 Width: 7.25 in (18.415 cm)
Package 1 Length: 8.44 in (21.433 cm)
Package 1 Weight: 5.77 lb(US) (2.615 kg)
Warranty: 18 months
